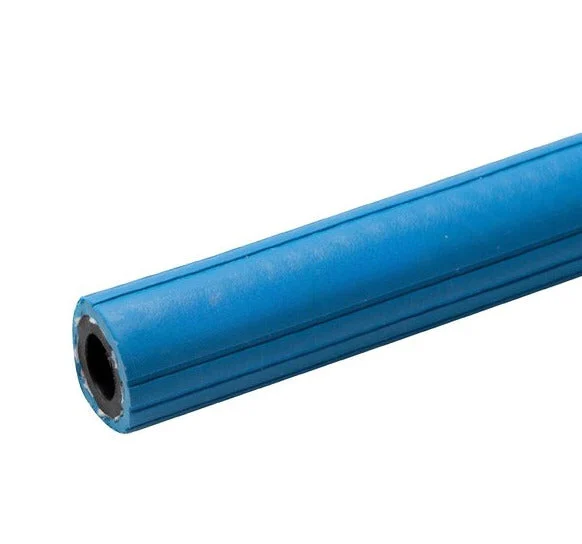

High quality 6 mm oxygen hose. It is made of high quality Rubber with textile inlays. The hose has a maximum working temperature of 60 °C and pressure of 20 bar at 20 °C. Specially produced for conveying oxygen gas in industrial applications like welding and acetylene/oxygen burners. The rubber inner layer and outer layers make the hose very durable and UV, ozone and weather resistant. The hose is relatively chemical resistant, for more information please inform our chemical resistance articles. This hose is sold on a roll of 40 m, we also offer pre-cut lengths. Hose conforms to DIN EN ISO 3821 standard(s).
Pros:
- Flexible
- Specially made for industrial welding/burning applications
- Relatively chemically resistant
- UV, ozone and weather resistant
- Hose conforms to DIN EN ISO 3821 standard(s)
HL-R-W-OX series
The HL-R-WL-OX oxygen gas hose series are cost effective high quality rubber gas hoses. The hoses are suitable for oxygen at both high and low pressures. Due to the rubber outer layer the hoses are relatively UV, ozone and weather resistant. The series offers hoses with an internal diameter of 6 – 9 mm. The hoses are available at pre-cut lengths of 1, 3 and 10 meter or as a 40 meter roll.
Specifications
Internal diameter (mm) : 6
Outer diameter (mm) : 16
Hose length (m) : 40
Hose material : Rubber
Max pressure at 20 °C (bar) : 20
Approval : Welding
Standard : DIN EN ISO 3821
Min temperature (°C) : -20
Max temperature (°C) : 60
Outer wall material : Rubber
Bursting pressure (bar) : 60
Roll length (m) : 40
Number of inlays : 1
Wall thickness (mm) : 5
Outside wall color : Blue
