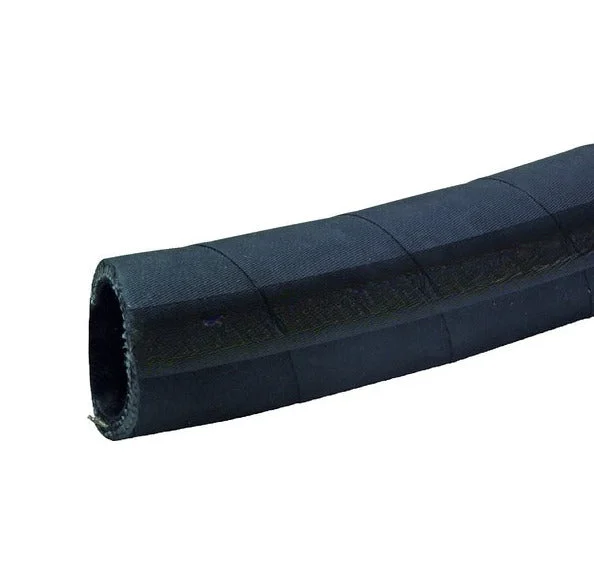

Parker NBR Oil and fuel pressure and suction hose 32 mm (ID) 1 m

Highly durable 32 mm oil & fuel pressure and suction hose. The hose is made of NBR (nitrile rubber) with a steel inlay. The hose has a temperature range of -25 °C to 80 °C (for biodiesel to +40 °C). The hose is suitable for commercial fuels such as petrol, diesel, heating oil. The hose is flame resistant and antistatic making is suitable for use in tank-truck applications. The steel wire inlay ensures the hose is UV, ozone and abrasion resistant. This hose is sold at a pre-cut length of 1 m, we also offer rolls with a length of 40 m. Hose conforms to EN 12115 standard.

Pros:

• suitable for commercial fuels such as petrol, diesel, heating oil
• Antistatic
• Flame resistant
• Suitable for tank truck applications
• Hose conforms to EN 12115 standard

NBR (nitrile rubber) series

The HL-N-C series are high quality oil & fuel pressure and suction hoses available in sizes from 19-100 mm inside diameter. The hoses are UV, ozone and abrasion resistant due to the steel inlay and are available in pre-cut lengths of 1, 3 and 10 meters or as a roll. The hoses are flame resistant and antistatic making them perfect for use as tank truck hoses.

Specifications

Internal diameter (mm) : 32
Outer diameter (mm) : 44
Hose length (m) : 1
Hose material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 16
Hose features : Abrasion resistance,Antistatic
Approval : Chemicals
Standard : EN 12115
Min temperature (°C) : -25
Max temperature (°C) : 80
Outer wall material : SBR/NBR
Bending radius (mm) : 175
Bursting pressure (bar) : 64
Roll length (m) : 40
Number of inlays : 1
Inlay material : Steel
Outside wall color : Black
Max. negative pressure (bar) : -0.9
