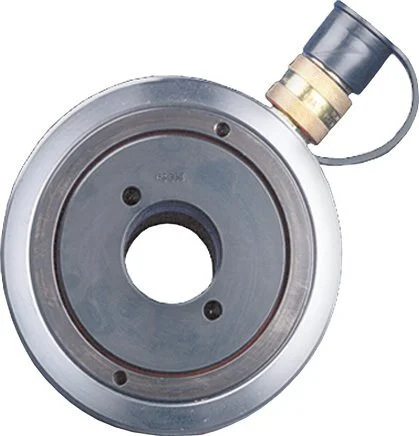

Power Team Hollow Piston 10 Ton Hydraulic Jack 203.2 mm Stroke

This is a Power Team single-acting, spring return, hollow piston 10 ton hydraulic jack cylinder designed for cable pulling and stretching, pulling out bolts, screws and pressure spindles. The jack has a stroke of 203.2 mm and a 19.4 mm center hole in the piston.

Pros:

• Maximum operating pressure of up to 700 bar
• Comes with an assembled coupling sleeve 9796
• Especially suitable for cable pulling and stretching, pulling out bolts, screws and pressure spindles

Specifications

Stroke (mm) : 203.2
Overall height retracted (mm) : 287.3
Internal diameter (mm) : 76.2
Center hole diameter (mm) : 19.4
Force (t) : 10
Max pressure (bar) : 700
