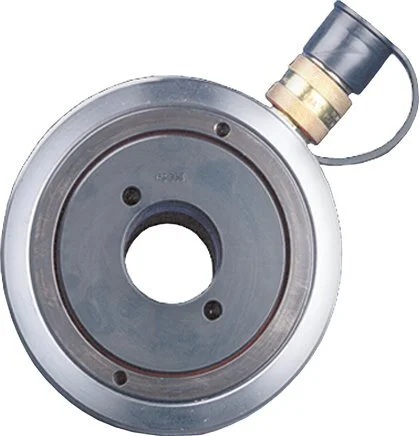

Power Team Hollow Piston 12 Ton Hydraulic Jack 41.3 mm Stroke

This is a Power Team single-acting, spring return, hollow piston 12 ton hydraulic jack cylinder designed for cable pulling and stretching, pulling out bolts, screws and pressure spindles. The jack has a stroke of 41.3 mm and a 20.2 mm center hole in the piston.

Pros:

• Maximum operating pressure of up to 700 bar
• Comes with an assembled coupling sleeve 9796
• Especially suitable for cable pulling and stretching, pulling out bolts, screws and pressure spindles

Specifications

Stroke (mm) : 41.3
Overall height retracted (mm) : 122.2
Internal diameter (mm) : 69.9
Center hole diameter (mm) : 20.2
Force (t) : 12
Max pressure (bar) : 700
