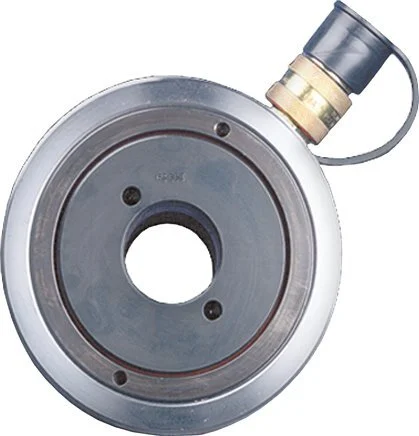

Power Team Hollow Piston 20 Ton Hydraulic Jack 50.8 mm Stroke

This is a Power Team single-acting, spring return, hollow piston 20 ton hydraulic jack cylinder designed for cable pulling and stretching, pulling out bolts, screws and pressure spindles. The jack has a stroke of 50.8 mm and a 27.4 mm center hole in the piston.

Pros:

• Maximum operating pressure of up to 700 bar
• Comes with an assembled coupling sleeve 9796
• Especially suitable for cable pulling and stretching, pulling out bolts, screws and pressure spindles

Specifications

Stroke (mm) : 50.8
Overall height retracted (mm) : 155.6
Internal diameter (mm) : 98.4
Center hole diameter (mm) : 27.4
Force (t) : 20
Max pressure (bar) : 700
