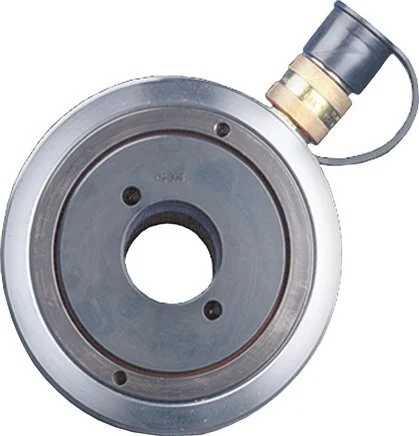

Power Team Hollow Piston 30 Ton Hydraulic Jack 63.5 mm Stroke

This is a Power Team single-acting, spring return, hollow piston 30 ton hydraulic jack cylinder designed for cable pulling and stretching, pulling out bolts, screws and pressure spindles. The jack has a stroke of 63.5 mm and a 32.9 mm center hole in the piston.

Pros:

• Maximum operating pressure of up to 700 bar
• Comes with an assembled coupling sleeve 9796
• Especially suitable for cable pulling and stretching, pulling out bolts, screws and pressure spindles

Specifications

Stroke (mm) : 63.5
Overall height retracted (mm) : 158.8
Internal diameter (mm) : 120.7
Center hole diameter (mm) : 32.9
Force (t) : 30
Max pressure (bar) : 700
