Key Features
Feed Logic ControlThe automatic feed logic system adjusts conveyor speed to match sanding load, which helps prevent overload and keeps the finish more consistent across the board. Dialed-In AccuracyExternal table parallelism adjustment lets you fine-tune the sanding setup without moving the full drum carriage, which saves setup time and makes repeatable thickness sanding easier. Built Shop ReadyThis drum sander includes infeed and outfeed tables, integrated casters, and a closed stand with storage, so it is easier to support long stock, move around the shop, and keep abrasives organized.
Overview

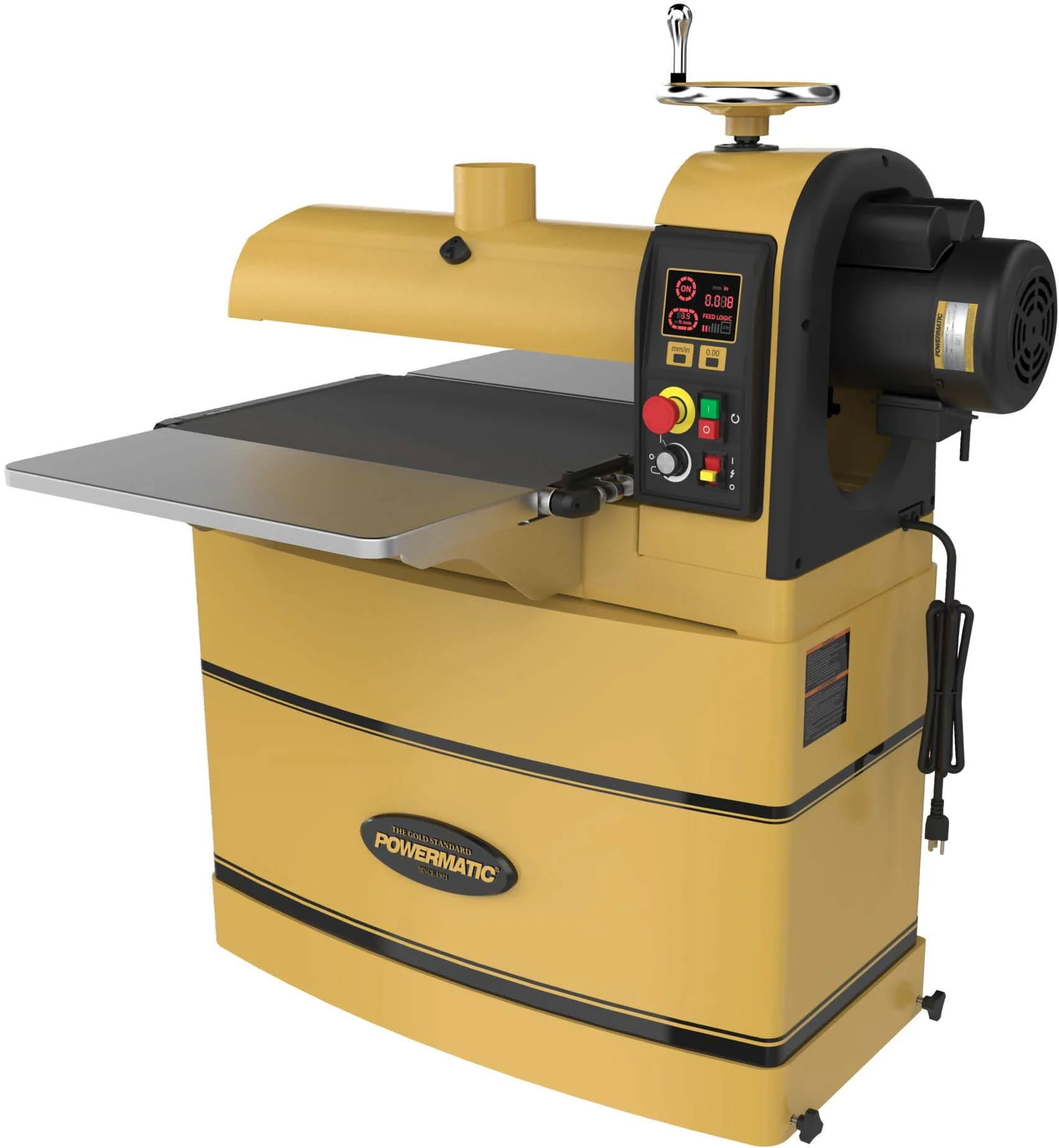

The Powermatic PM2244 Drum Sander is a 22-inch stationary drum sander built for woodworking shops that need controlled, repeatable surface sanding on panels, tabletops, doors, and other wide stock. This is a drum sander designed for flattening and finish sanding wood surfaces with consistent feed control. Model Number PM2244. With a 1-3/4 HP motor, 115V single-phase power, and a maximum board width of 44 inches in two passes, it is aimed at serious hobbyists and pro woodworkers who want better control than a handheld sander can deliver.
What makes this machine matter in the shop is how it manages the sanding process, not just how wide it sands. Powermatic’s Feed Logic system automatically regulates conveyor speed to maintain sanding performance and reduce overload. In real terms, that means the machine helps keep the work moving at a feed rate the drum can actually handle instead of forcing you to guess and risking burn marks, stalls, or inconsistent stock removal. The independent feed and drive motors add to that control, and the variable feed range of 0 to 10 feet per minute gives you a useful spread for rough stock removal or slower finishing passes.
The Powermatic PM2244 Drum Sander is also set up to make accuracy easier to maintain over time. External table parallelism adjustment is a big deal on a machine like this because you can fine-tune the table relationship without making full carriage adjustments. That saves time during setup and helps when you are chasing even thickness across a wide panel. Powermatic also includes a secondary absolute depth scale for another height reference, plus an integrated LED control panel that shows power status, belt speed, and digital readout so the machine gives you useful information right where you need it.
From a build standpoint, this unit is clearly intended as a stationary shop machine, not a light benchtop compromise. The rigid drum carriage is designed to hold alignment for consistent sanding results over time. The precision-machined cast iron conveyor bed and no-give power feed belt provide a flatter support surface, which matters when you are trying to avoid taper or uneven sanding on longer boards. The sealed, permanently lubricated drum ball bearings are another practical touch because they cut down on maintenance and support long service life.
Dust collection and shop practicality are handled the way they should be on a machine in this class. The steel hood uses a 4-inch dust port to move sanding dust away from the drum and work area, which helps with abrasive life, visibility, and cleanup. Powermatic also adds an emergency stop for quick shutoff, integrated casters for moving the machine around the shop, and a closed stand with storage so abrasives and accessories are not left floating around the bench. Included infeed and outfeed tables provide 37-1/2 inches of workpiece support, which is especially useful when feeding longer panels and wider boards through the machine.
In day-to-day use, the 22-inch drum length and 4-inch maximum board thickness give this woodworking sander enough range for cabinet parts, glued-up panels, face frames, shelves, cutting boards, and other shop projects that need a predictable finish before final assembly or topcoat. The drum turns at 1,720 RPM, which is a practical speed for controlled stock removal rather than aggressive material hogging. This is not a substitute for a planer when you need heavy dimensioning, but it is the right kind of machine when your goal is cleaner surface prep and more consistent final thickness on figured, veneered, or glue-up stock where tear-out or uneven sanding can ruin the piece.
Who should buy it? The best fit is a woodworker who regularly sands larger flat stock and wants better consistency, less hand sanding, and more control over final surface quality. Furniture makers, cabinet shops, serious home shops, and remodeling pros doing custom millwork will get the most from it. If you only sand small parts once in a while, this is more machine than you need. If you build panels, doors, tabletops, or production runs and want repeatable sanding with good support and better process control, the PM2244 earns its floor space.
Powermatic PM2244 Drum Sander for Controlled Wide-Stock Sanding
This 22-inch drum sander is built for woodworkers who need a cleaner, more repeatable way to surface sand wide material. The machine combines controlled feed speed, clear readouts, and a rigid sanding platform so you spend less time fighting setup and more time getting usable finish-ready stock.
- Maximum board width of 44 inches in two passes
- 0 to 10 feet per minute variable conveyor feed
- Included infeed and outfeed tables add 37-1/2 inches of workpiece support
Key Specifications
| Motor Output | 1.75 HP |
|---|---|
| Voltage | 115V, 1Ph |
| Amperage | 14 A |
| Drum Speed | 1,720 RPM |
| Drum Diameter | 5 in. |
| Drum Length | 22 in. |
| Maximum Board Width | 44 in. |
| Maximum Board Thickness | 4 in. |
| Feed Speed Range | 0 to 10 FPM |
| Dust Port Diameter | 4 in. |
| Net Weight | 328 lbs |
| Number of Sanding Drums | 1 |
Built For
Woodworking Cabinetry Furniture Making Panel Sanding Finish Sanding Millwork Custom Shops Serious DIY / Hobbyist
Pro Tip
When you are dialing in final thickness on a glued-up panel, use the external table parallelism adjustment first instead of chasing the whole drum carriage. It is a faster way to clean up side-to-side inconsistency and makes repeat passes more predictable.
Warranty & Support
Powermatic backs the PM2244 with a 5-year warranty.
Tool Nut’s Take
Tool Nut’s Take
Serious surface control without stepping up to an industrial monster
The Powermatic PM2244 Drum Sander hits a sweet spot for woodworkers who need accurate wide-stock sanding, better feed control, and a machine that feels purpose-built instead of stripped down.
- Who it’s for: Furniture builders, cabinet makers, custom millwork shops, and committed home-shop woodworkers sanding panels, doors, shelves, and glued-up tops.
- Why it stands out: Feed Logic, external parallelism adjustment, cast iron conveyor support, and the included infeed and outfeed tables all work together to make the machine easier to trust on finish-critical work.
- Worth knowing: This is a 328 lb stationary machine that earns its keep when you sand a lot of flat stock. If your sanding is occasional and small-scale, it is more capacity than you need.
Common Questions
- What kind of tool is this? It is a stationary drum sander for woodworking, designed for surface sanding and thickness consistency on boards, panels, and other flat stock.
- What is the maximum sanding width? The PM2244 handles up to 44 inches maximum board width in two passes.
- What is the maximum board thickness? The listed maximum board thickness is 4 inches.
- Does it use variable feed speed? Yes. The feed system runs from 0 to 10 feet per minute, and Feed Logic helps regulate conveyor speed under load.
- What power does it require? This machine uses 115V single-phase power and has a 1-3/4 HP motor.
