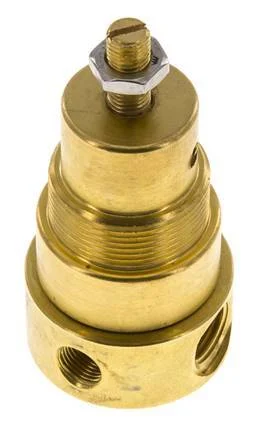

The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between1.0 to 15.0 bar (14 to 218 psi). This model has G 1/4 inch ports. The maximum flow rate is 330 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 30.0 bar (435 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). The housing material is made out of brass. This pressure regulator is suitable for gases and liquids.
Mounting brackets need to be ordered separately.
Specifications
Connection size : 1/4 inch
Max flow rate (l/min) : 330
Adjustment range (bar) : 1 bar to 15 bar
Max. pressure difference at 20 °C (bar) : 30
Pressure regulator feature : For gases and liquids,Non-relieving
Material : Brass
Connection type : Inner thread cylindrical BSPP-G
Kv value [m3/h] : 0.2
Min temperature (°C) : -20
Max temperature (°C) : 80
Height (mm) : 88
Length (mm) : 40
