Application – ceramic, tile, roof tile, brick, porcelain, marble, granite, and natural stone.
Indicated for electric tile cutters, including ZAPP 180 BR.
*Check arbor diameter.
| CODE | MODEL | DISC DIAMETER | HOLE DIAMETER | REDUCING BUSHING | UNIT PACKING DIMENSIONS | WEIGHT | MASTER PACKAGING QTY | EAN 13 |
|---|---|---|---|---|---|---|---|---|

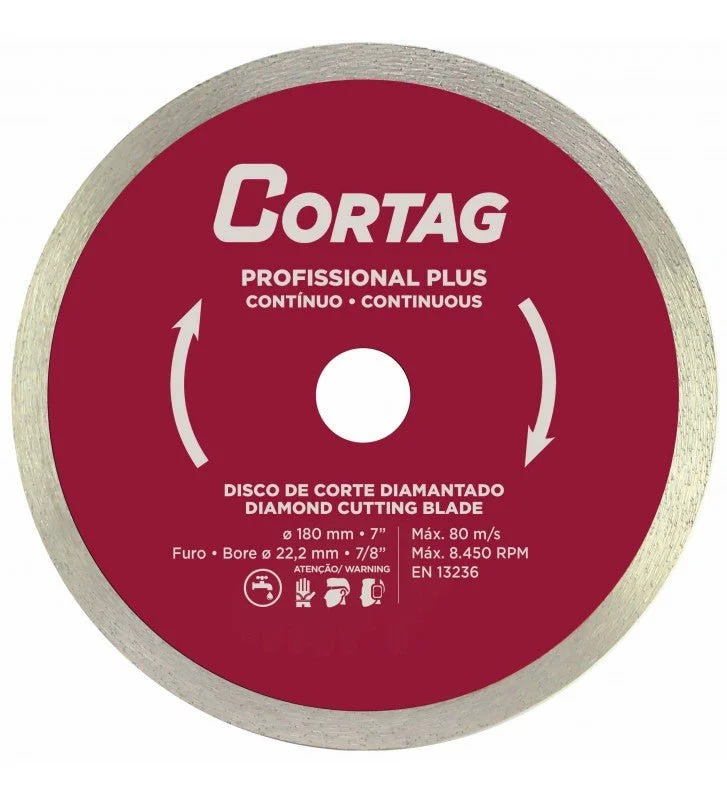

| 60403 | Diamond Blade – 180 mm – Professional Plus | 180 mm | 22,2 mm | N | 250 mm x 220 mm x 5 mm | 0,340 kg | 3 | 789 74514 6403 – 0 |
| 60421 | Diamond Blade – 180 mm – Professional Premium | 180 mm | 22,2 mm | N | 250 mm x 220 mm x 5 mm | 0,345 kg | 3 | 789 74514 6421 – 1 |
| 60570 | Diamond Blade – 200 mm – Professional Plus | 200 mm | 25,4 mm | N | 205 mm x 205 mm x 5 mm | 0,400 kg | 3 | 789 74514 6057 – 5 |
| 61340 | Diamond Blade – 200 mm – Professional Premium | 200 mm | 25,4 mm | N | 205 mm x 205 mm x 5 mm | 0,400 kg | 3 | 789 74514 1340 – 0 |
| 61550 | Diamond Blade – 254 mm – Professional Plus | 254 mm | 25,4 mm | 15,9 mm | 250 mm x 220 mm x 5 mm | 0,450 kg | 3 | 789 74514 1550 – 6 |
| 61620 | Diamond Blade – 200 mm – Professional Best Quality | 200 mm | 25,4 mm | N | 320 mm x 270 mm x 7 mm | 0,345 kg | 3 | 789 74514 1620- 6 |
| CODE | MODEL | CUTTING TYPE | APPLICATION | PROFILE | MAXIMUM ROTATION |
|---|---|---|---|---|---|
| 60403 | Diamond Blade – 180 mm – Professional Plus | Refrigerated | ZAPP 180 | Continuos | 8.450 rpm |
| 60421 | Diamond Blade – 180 mm – Professional Premium | Refrigerated | ZAPP 180 | Continuos | 8.450 rpm |
| 60570 | Diamond Blade – 200 mm – Professional Plus | Refrigerated | ZAPP G2 e ZAPP Fit | Continuos | 7.500 rpm |
| 61340 | Diamond Blade – 200 mm – Professional Premium | Refrigerated | ZAPP G2 e ZAPP Fit | Continuos | 7.500 rpm |
| 61550 | Diamond Blade – 254 mm – Professional Plus | Refrigerated | ZAPP 600 | Continuos | 6.000 rpm |
| 61620 | Diamond Blade – 200 mm – Professional Best Quality | Refrigerated* | ZAPP G2 and ZAPP Fit | Continuos | 7.500 rpm |
