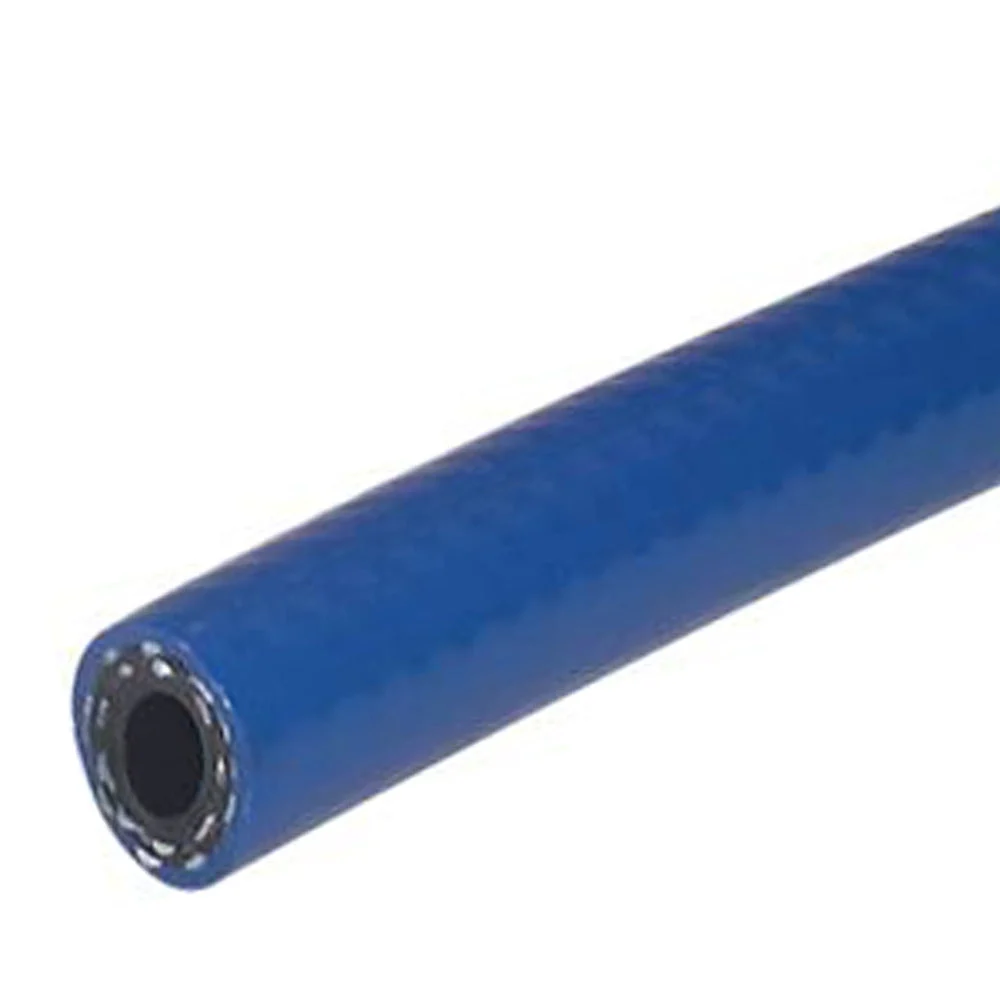

Universal 16 mm compressed air hose . It is made of high quality Polyvinyl chloride (PVC) and has a maximum working temperature of 60 °C and working pressure of 80 bar at 20 °C. The hose is relatively chemical resistant, for more information please inform our chemical resistance articles. The Polyvinyl chloride (PVC) is reinforced with a polyester fabric inlay making it suitable for high pressure (80 bar at 20 °C) operations. This hose is sold at a pre-cut length of 3 m, we also offer rolls with a length of 50 m.
Pros:
- Suitable for high-pressure due to strong polyester inlay
- Cost effective due to efficient manufacturing process
- UV-resistant
Cons:
- Sold at a length of 3 meter, but can be cut to your desired length by a hose cutter
HL-PVC-80 series
The HL-PVC-80 compressed air hose series are cost effective high quality PVC hoses. The hoses are suitable for compressed air at a maximum pressure of 80 bar. The series offers hoses with an internal diameter of 8 – 19 mm. The hoses are available at pre-cut lengths of 1, 3 and 10 meter or as a 50 meter roll.
Specifications
Outer diameter (mm) : 26.5
Hose length (m) : 3
Hose material : Polyvinyl chloride (PVC)
Hose features : UV radiation resistance
Roll length (m) : 50
