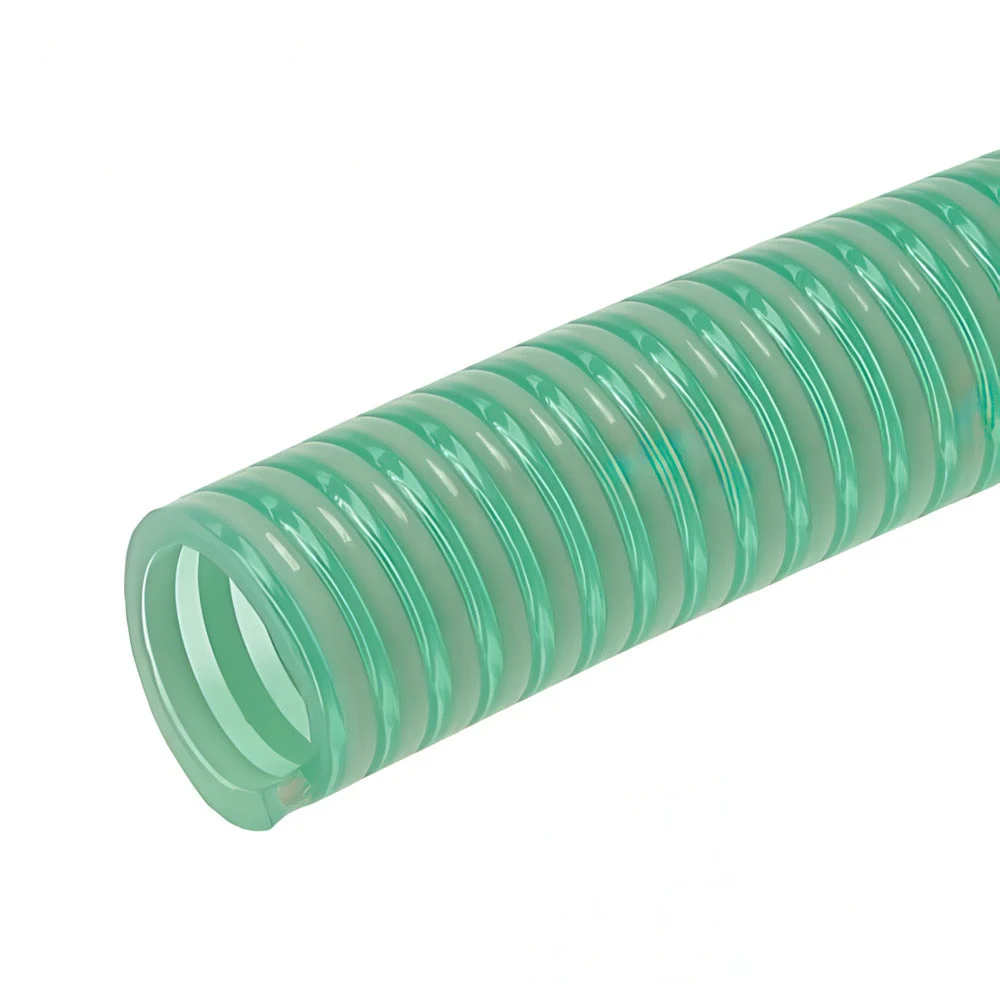

High quality 13 mm pressure and suction hose. The hose is made of polyvinyl chloride (PVC) with a high tensile strength hard PVC wire spiral as a pressure support. With a temperature range of -10 °C to 55 °C, an operating pressure of 8 bar and a maximum vacuum pressure of -0.7 bar an ideal hose for irrigation and drainage projects in industry, agriculture and horticulture. High tear and abrasion resistance, high elasticity and ageing resistance. This hose is sold at a pre-cut length of 10 m, we also offer rolls with a length of 50 m.
Pros:
- Suitable for both pressure and suction applications due to the high tensile strength spiral
- High temperature range (temperature range of °C to 55 °C)
Cons:
- Maximum working pressure of 8 bar
- Not antistatic
HL-PVC series
The HL-PVC series are high quality pressure and suction hoses available in various sizes. The hoses are transparent and suitable for both pressure and suction applications. They are available in pre-cut lengths of 1, 3 and 5 meters or as a 50 meter roll.
Specifications
Internal diameter (mm) : 13
Outer diameter (mm) : 18.8
Hose length (m) : 10
Hose material : Polyvinyl chloride (PVC)
Max pressure at 20 °C (bar) : 8
Min temperature (°C) : -10
Max temperature (°C) : 55
Bending radius (mm) : 70
Roll length (m) : 50
Wall thickness (mm) : 2.5
Max. negative pressure (bar) : -0.7
Spiral material : PVC wire
