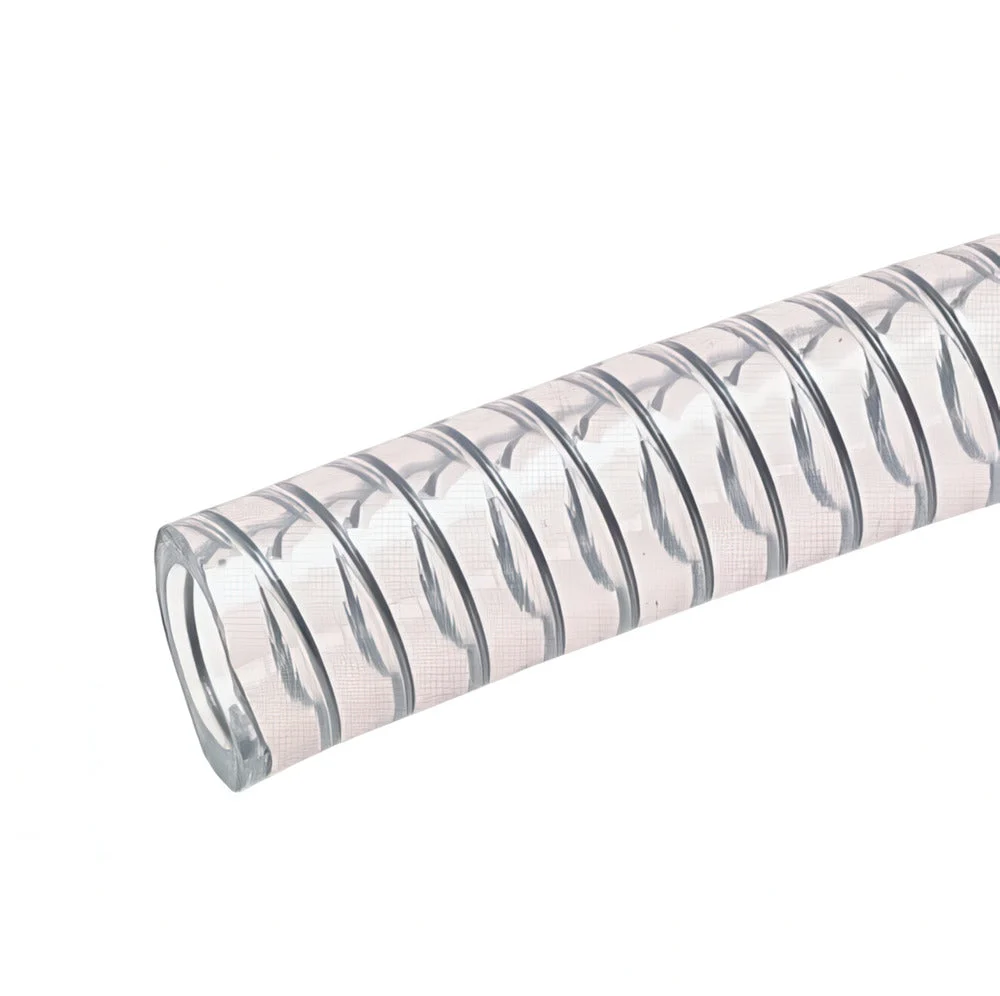

High quality 32 mm pressure and suction hose. The hose is made of polyvinyl chloride (PVC) with a high tensile strength steel wire spiral as a pressure support. Suitable for food-grade applications. With a temperature range of -10 °C to 65 °C, an operating pressure of 5 bar and a maximum vacuum pressure of -0.9 bar an ideal hose for irrigation and drainage projects in industry, agriculture and horticulture. High tear and abrasion resistance, high elasticity and ageing resistance. This hose is sold at a pre-cut length of 3 m, we also offer rolls with a length of 30 m. Hose conforms to Regulation (EU) 10/2011 standard.
Pros:
- Suitable for both pressure and suction applications due to the high tensile strength spiral
- High temperature range (temperature range of °C to 65 °C)
- Suitable for food-grade applications
- Hose conforms to Regulation (EU) 10/2011 standard
Cons:
- Maximum working pressure of 5 bar
- Not antistatic
HL-PVC-F series
The HL-PVC-F series are high quality pressure and suction hoses available in various sizes. The hoses are transparent and suitable for both pressure and suction applications. They are available in pre-cut lengths of 1, 3 and 5 meters or as a 30 meter roll.
Specifications
Internal diameter (mm) : 32
Outer diameter (mm) : 40.2
Hose length (m) : 3
Hose material : Polyvinyl chloride (PVC)
Max pressure at 20 °C (bar) : 5
Approval : Food-grade
Standard : Regulation (EU) 10/2011
Min temperature (°C) : -10
Max temperature (°C) : 65
Bending radius (mm) : 75
Roll length (m) : 30
Wall thickness (mm) : 4.1
Max. negative pressure (bar) : -0.9
Spiral material : Steel
