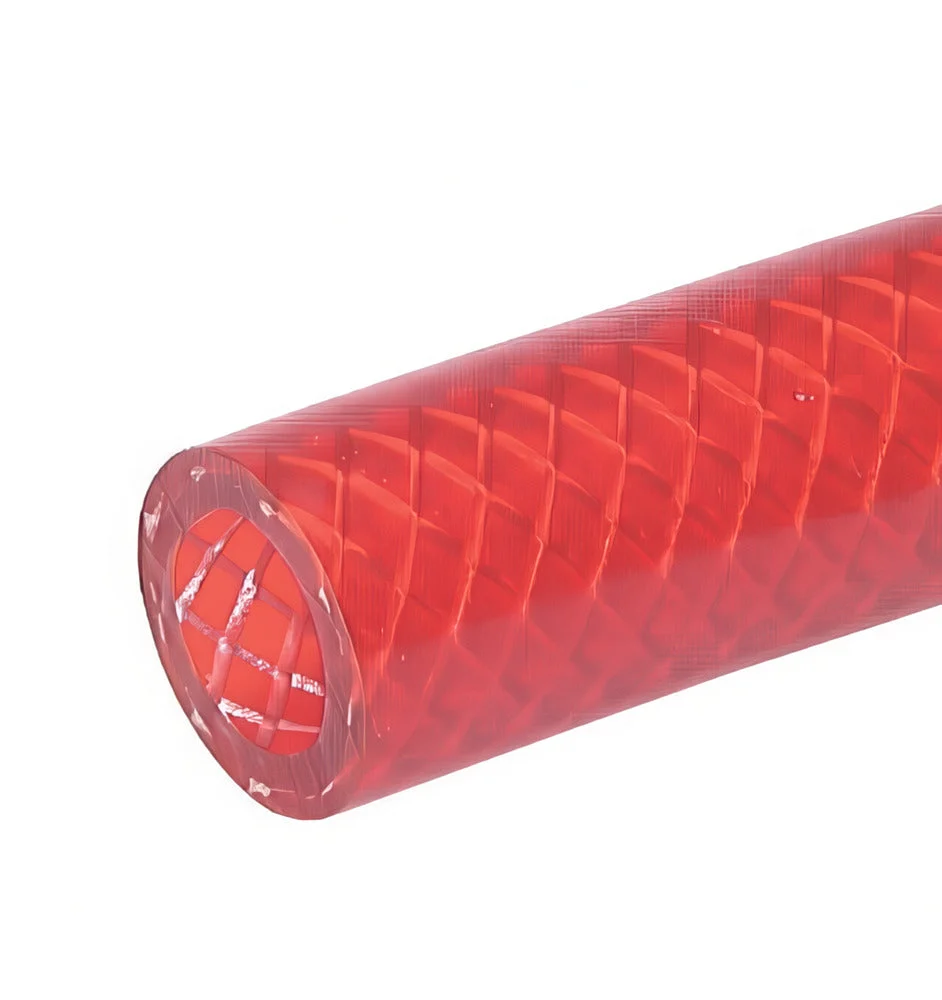

Universal 19 mm water hose in the colour Red. It is made of high quality polyvinyl chloride (PVC) and has a maximum working temperature of 60 °C and working pressure of 13 bar at 20 °C. It is suitable for water, drinking water (max. 3 h), fruit juice and alcoholic drinks up to 15%. When using the hose for transporting food-related products it is advised to thoroughly clean the hose before and after use to prevent spoilage and deposits. The hose is relatively chemical resistant, for more information please inform our chemical resistance articles. The Polyvinyl chloride (PVC) is reinforced with fabric braiding giving the hose excellent resistance to wear and tear. This hose is sold at a pre-cut length of 3 m, we also offer rolls with a length of 50 m. Hose conforms to Regulation (EC) 1935/2004, Regulation (EU) 10/2011& FDA 21 CFD 175.346 standard(s).
Pros:
- Suitable for a wide range of applications
- Wear and tear resistant because of the fabric braiding
- Very flexible
- Food-grade applications
- Hose conforms to Regulation (EC) 1935/2004, Regulation (EU) 10/2011& FDA 21 CFD 175.346 standard(s)
Cons:
- Sold at a length of 3 meter, but can be cut to your desired length by a hose cutter
HL-PVC-FD series
The HL-PVC-FD universal water hose series are cost effective high quality PVC hoses. The hoses are suitable for water, drinking water (max. 3 h), compressed air, argon, wine, fruit juice, lemonade, mineral water, unfermented fruit juice and alcoholic drinks up to 15%. The series offers hoses with an internal diameter of 4 to 50 mm. The hoses are available in the colours blue, green, red, transparent and light green, and pre-cut lengths of 1, 3 and 10 meter or as a 50 meter roll.
Specifications
Internal diameter (mm) : 19
Outer diameter (mm) : 26
Hose length (m) : 3
Hose material : Polyvinyl chloride (PVC)
Max pressure at 20 °C (bar) : 13
Approval : Food-grade,Drinking water
Standard : Regulation (EC) 1935/2004,Regulation (EU) 10/2011,FDA 21 CFD 175.300
Min temperature (°C) : -20
Max temperature (°C) : 60
Outer wall material : Polyvinyl chloride (PVC)
Roll length (m) : 50
Number of inlays : 1
Inlay material : Textile
Outside wall color : Red
