R 1/2” Male x 9mm PA 6 Hose barb 10 Bar [5 Pieces]

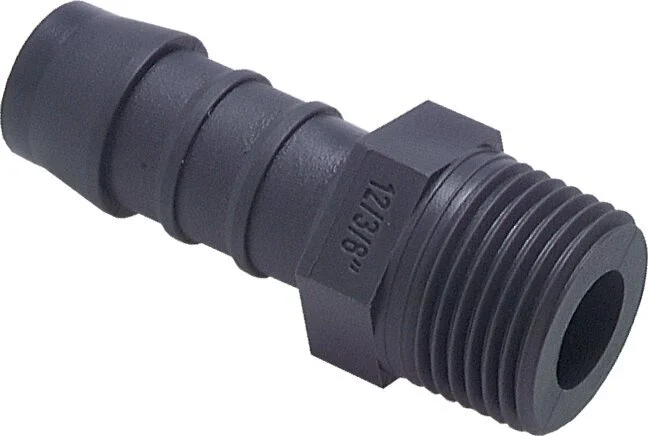

This hose screw connection is designed with a nozzle and a male thread. Connection 1 has R 1/2 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 9 mm. It is a straight fitting. It is made out of pa 6. At 20 °C (68 °F), it can handle a maximum pressure of 10 bar (145 psi). It has a 22 mm nut to be tightened with a wrench.

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 1/2 inch
Hose pillar connection : 9 mm
Connection type : Outer thread conical BSPT-R
Material : PA 6
Max pressure at 20 °C (bar) : 10
Model : 1-part
Material connection 1 : PA 6
Material connection 2 : PA 6
Shape : Straight
Wrench width (mm) : 22
