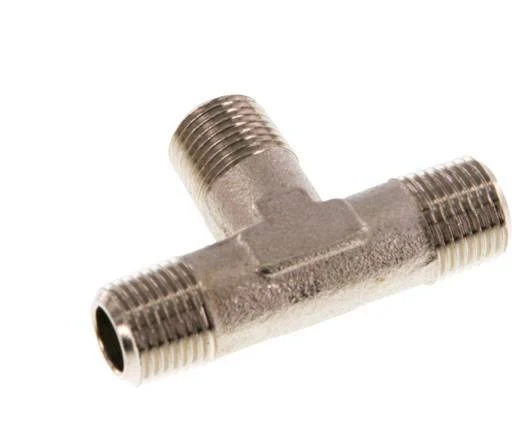

R 1/8” Male Nickel plated Brass Tee 16 Bar [5 Pieces]

This T-piece is designed with three male threaded connections in a T shape. Connection 1 has R 1/8 inch threads. Connection 2 has R 1/8 inch threads. Connection 3 has R 1/8 inch threads. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL3T-M series

The FL3T-M series has 3 connection ports of male threads in the shape of a T. Made out of brass and steel, they have a max pressure from 16 to 345 bar.

Specifications

Thread : 1/8 inch
Thread (smallest) : 1/8 inch
Connection type : Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : T-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
