Reducing Ring Rp3/8” Female x G3/4” Male PVC-U 16bar (224.8psi) EN 1452-3 [5 Pieces]

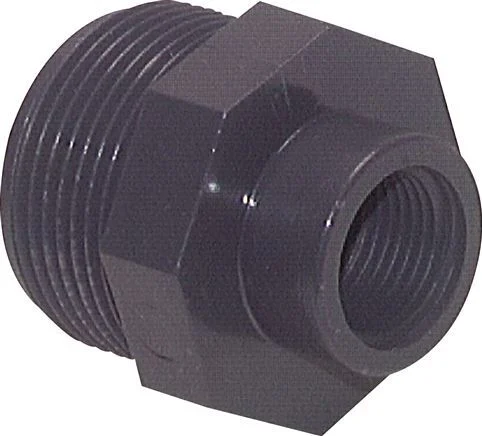

This is a PVC-U reducing ring with male (G) and female (Rp) threads. It is compliant with the 1452-3 standard and can be used for water supply and for under- and above-ground drainage as well as for sewerage under pressure. The maximum operating pressure is 16 bar (224.8 psi).

Note: If using thread sealant, ensure it does not damage PVC-U.

Specifications

Thread : 3/4 inch
Thread (smaller) : 3/8 inch
Connection type : Inner thread cylindrical BSPT-Rp,Outer thread cylindrical BSPP-G
Material : PVC-U
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : 0
Max temperature (°C) : 60
Standard : EN 1452-3
Fitting features : Reducing
Material connection 1 : PVC-U
Material connection 2 : PVC-U
Shape : Straight
With drain : No
