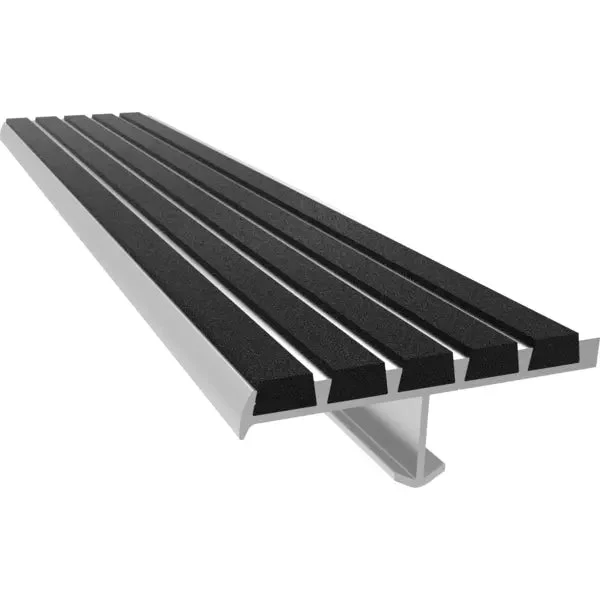

Economical and easy to install, Babcock-Davis Ribbed Bar Abrasive Nosing is designed for stairs and is perfect for indoor and outdoor poured concrete stair applications where extra safety is desired or required by code.
The ribbed abrasive grit can be customized for multi-color treads.
Features
- Anti-Slip Safety
- Continuous Color
- Optional Vision Line
- 14 Color Options
- Title 24 Compliant*
Specifications
| Model | BSTSB |
|---|---|
| Channel | Extruded Aluminum |
| Application | Concrete Poured, Steel Pan, Terrazzo or Wood |
| Tread | Ribbed Bar Abrasive or EcoTread |
| Width | 1-7/8″, 3″ or 4″ |
| Mounting | Extruded Anchor or Drilled Holes |
| Nosing | Short, Short-Tipped, Long, or Angled |
| Compliance | California Title 24, Section 3306 |
| Colors | Abrasive Grit: Black, Yellow, Photoluminescent, Gray, Brown, Burgundy, Green, Blue, Red or Buff (Orange) EcoTread: Black, Safety Yellow, Blue, Gray |
| Options | Vision Line, Abrasive Colors, Mitered Cuts, Painted Undersides, and Taped Tops |
| Warranty | 1 Year |
Order Guide
| MODEL | WIDTH | TREAD | NOSING | INSTALL |
|---|---|---|---|---|
| BSTSB-C1.875E-ECO | 1-7/8″ | EcoTread | Short | Cast-In, Extruded Anchor |
| BSTSB-C1.875E | 1-7/8″ | Abrasive Grit | Short | Cast-In, Extruded Anchor |
| BSTSB-C1.875D-ECO | 1-7/8″ | EcoTread | Short | Drilled Hole, Mech. Fastened |
| BSTSB-C1.875D | 1-7/8″ | Abrasive Grit | Short | Drilled Hole, Mech. Fastened |
| BSTSB-P1.875E-ECO | 1-7/8″ | EcoTread | Short-Tipped | Cast-In, Extruded Anchor |
| BSTSB-P1.875E | 1-7/8″ | Abrasive Grit | Short-Tipped | Cast-In, Extruded Anchor |
| BSTSB-L1.875E-ECO | 1-7/8″ | EcoTread | Long | Cast-In, Extruded Anchor |
| BSTSB-L1.875E | 1-7/8″ | Abrasive Grit | Long | Cast-In, Extruded Anchor |
| BSTSB-L1.875D-ECO | 1-7/8″ | EcoTread | Long | Drilled Hole, Mech. Fastened |
| BSTSB-L1.875D | 1-7/8″ | Abrasive Grit | Long | Drilled Hole, Mech. Fastened |
| BSTSB-A1.875D-ECO | 1-7/8″ | EcoTread | Angled – Long | Drilled Hole, Mech. Fastened |
| BSTSB-A1.875D | 1-7/8″ | Abrasive Grit | Angled – Long | Drilled Hole, Mech. Fastened |
| BSTSB-C3E-ECO | 3″ | EcoTread | Short | Cast-In, Extruded Anchor |
| BSTSB-C3E | 3″ | Abrasive Grit | Short | Cast-In, Extruded Anchor |
| BSTSB-C3D-ECO | 3″ | EcoTread | Short | Drilled Hole, Mech. Fastened |
| BSTSB-C3D | 3″ | Abrasive Grit | Short | Drilled Hole, Mech. Fastened |
| BSTSB-P3E-ECO | 3″ | EcoTread | Short-Tipped | Cast-In, Extruded Anchor |
| BSTSB-P3E | 3″ | Abrasive Grit | Short-Tipped | Cast-In, Extruded Anchor |
| BSTSB-L3E-ECO | 3″ | EcoTread | Long | Cast-In, Extruded Anchor |
| BSTSB-L3E | 3″ | Abrasive Grit | Long | Cast-In, Extruded Anchor |
| BSTSB-L3D-ECO | 3″ | EcoTread | Long | Drilled Hole, Mech. Fastened |
| BSTSB-L3D | 3″ | Abrasive Grit | Long | Drilled Hole, Mech. Fastened |
| BSTSB-A3E-ECO | 3″ | EcoTread | Angled – Long | Cast-In, Extruded Anchor |
| BSTSB-A3E | 3″ | Abrasive Grit | Angled – Long | Cast-In, Extruded Anchor |
| BSTSB-A3D-ECO | 3″ | EcoTread | Angled – Long | Drilled Hole, Mech. Fastened |
| BSTSB-A3D | 3″ | Abrasive Grit | Angled – Long | Drilled Hole, Mech. Fastened |
| BSTSB-C4E-ECO | 4″ | EcoTread | Short | Cast-In, Extruded Anchor |
| BSTSB-C4E | 4″ | Abrasive Grit | Short | Cast-In, Extruded Anchor |
| BSTSB-C4D-ECO | 4″ | EcoTread | Short | Drilled Hole, Mech. Fastened |
| BSTSB-C4D | 4″ | Abrasive Grit | Short | Drilled Hole, Mech. Fastened |
| BSTSB-P4E-ECO | 4″ | EcoTread | Short-Tipped | Cast-In, Extruded Anchor |
| BSTSB-P4E | 4″ | Abrasive Grit | Short-Tipped | Cast-In, Extruded Anchor |
