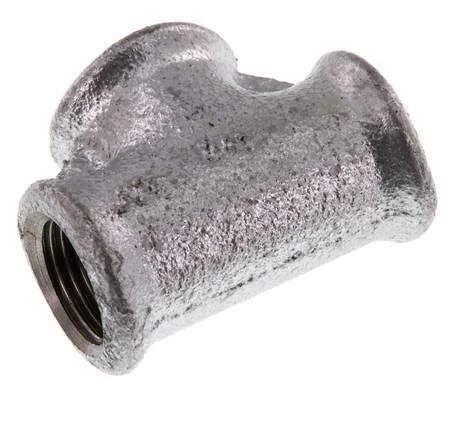

Rp 1/2” Zinc plated Cast iron Tee 25 Bar [5 Pieces]

This T-piece is designed with 3 female threaded ports in a T shape. Connection 1 has Rp 1/2 inch threads. Connection 2 has Rp 1/2 inch threads. Connection 3 has Rp 1/2 inch threads. It is made out of cast iron (malleable) and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 25 bar (363 psi).

FL3T-F series

The FL3T-F series has 3 connection ports of all female NPT, G, Rp, or metric threads. They are in a T shape. Made out of brass, cast iron, steel, or stainless steel they have a pressure range of 10 to 350 bar.

Specifications

Thread : 1/2 inch
Thread (smallest) : 1/2 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Cast iron
Max pressure at 20 °C (bar) : 25
Model : T-piece
Angle adjustable : No
Material connection 1 : Cast iron
Material connection 2 : Cast iron
Material connection 3 : Cast iron
Material quality connection 1 : Malleable cast iron
Material quality connection 2 : Malleable cast iron
Material quality connection 3 : Malleable cast iron
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
With drain : No
