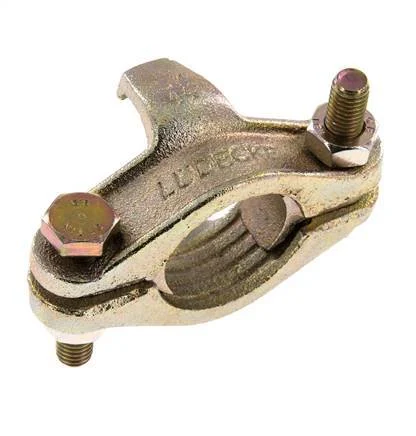

Hose clamp with safety claws for compressor claw couplings (DIN 20039B). Made from Malleable cast iron. Suitable for a hose diameter between 42-45 mm. The hose clamp exist out of two parts that are clamped around the hose with two bolts. They have claws that are designed to use together with compressor claw couplings with a safety collar. The claws prevent the claw coupling from being pushed out of the hose. For this to work, the compressor coupling needs to have a safety collar.
Pros:
- Extra safety due to the additional claws. Requires a claw coupling with safety collar.
CL-SE series
Our air coupler offering ranges from DN 2.7 – 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
Specifications
Clamping range (mm) : 42 mm to 45 mm
Material : Malleable cast iron
Internal diameter (mm) : 28
Surface protection : Galvanic/electrolytic zinc plated
One-piece : No
