Key Features
SawStop Safety SystemThe blade brake is the reason many buyers start here. If skin contacts the blade, the system stops it in less than 5 milliseconds and drops it below the table to help turn a bad day into a minor injury. 36 in. T-Glide FenceThis table saw is built around a heavy-gauge steel fence system that locks down square and stays put. That matters when you need repeatable rip cuts without chasing alignment. 1.75 HP Contractor PlatformThe 1.75 horsepower motor gives serious woodworkers and contractors the capacity for everyday ripping, crosscutting, and dado work while keeping the saw more flexible and configurable than a full cabinet setup.
Overview

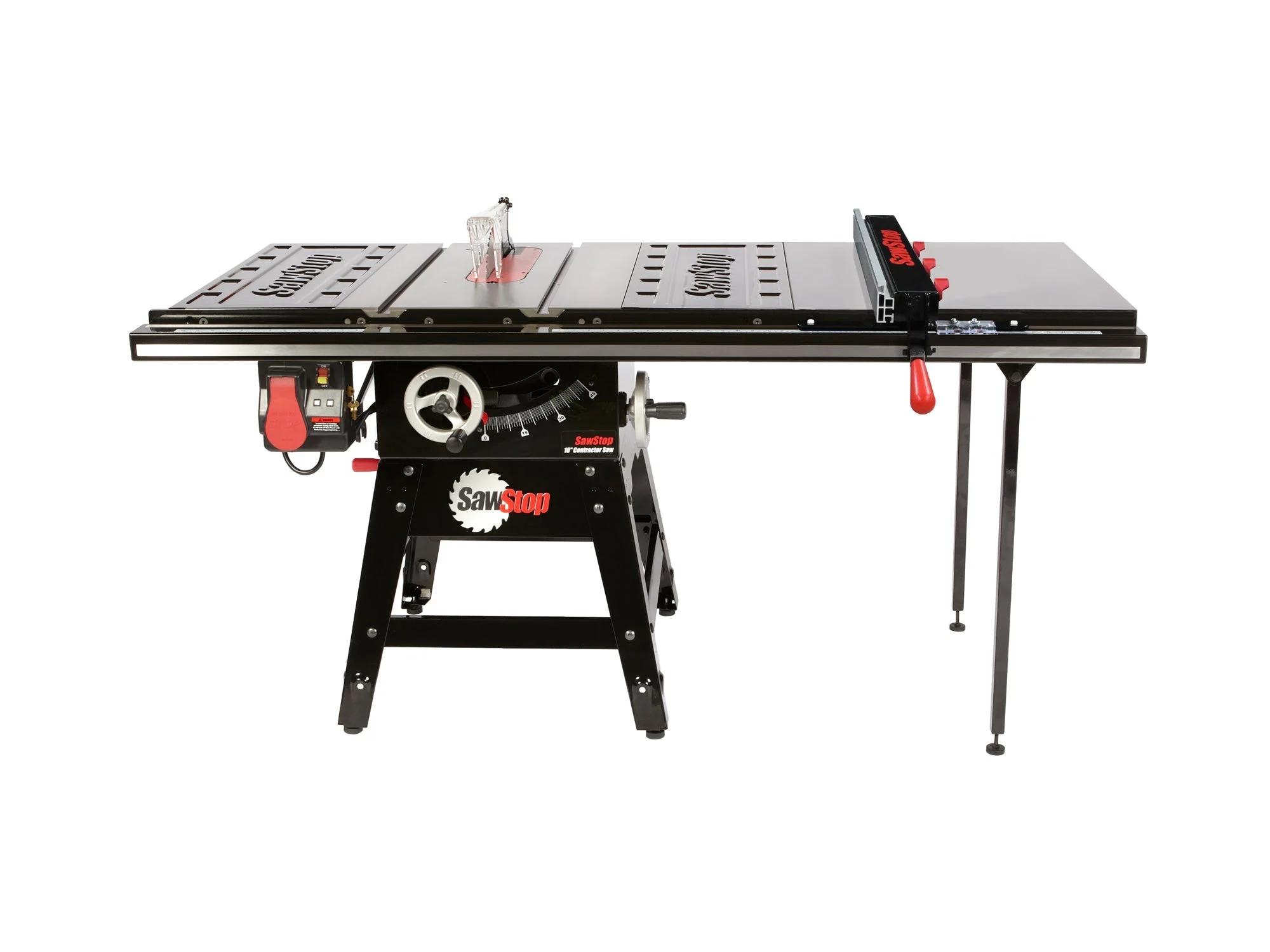

SawStop CNS175-ATGP36 Contractor Saw with 36 in. T-Glide Advance Fence Assembly is a 10 inch table saw built for accurate ripping, crosscutting, and dado work in a serious home shop or light professional setting. This is a table saw designed for precision woodworking and safer everyday cutting. Model Number: CNS175-ATGP36. With a 1.75 horsepower single-phase motor set up for 120V operation, a 36 inch rip fence system, and SawStop’s flesh-sensing brake technology, this saw is aimed at woodworkers who want cabinet-saw style control without stepping all the way into a larger cabinet machine.
The big story on this saw is not just safety, it is how much useful saw you get around that safety system. The included 36 inch Professional T-Glide Advance Fence Assembly gives you up to 36 inches of rip capacity to the right of the blade and 12 inches to the left. That means sheet breakdown, shelving parts, face-frame stock, and hardwood ripping are all realistic tasks on one platform. The heavy-gauge steel fence and rail setup is built to lock down square without deflection, which is exactly what you want when repeat cuts need to stay repeat cuts.
Cut capacity is right where a good 10 inch contractor saw needs to be. You get a maximum depth of cut of 3-1/8 inches at 0 degrees and 2-1/4 inches at 45 degrees, with left blade tilt for bevel work. The included 40-tooth professional-grade blade mounts on a 5/8 inch arbor, and the saw also accepts up to an 8 inch dado stack with a maximum width of 29/32 inch when used with the required dado brake cartridge and insert. For anyone building cabinets, furniture, trim assemblies, or shop fixtures, that dado capability matters because it lets the saw handle grooves, rabbets, and joinery instead of being limited to straight rip work.
SawStop also paid attention to the mechanical side. The trunnion and arbor are built for precision and stability, and the poly V-ribbed belt helps reduce vibration so the saw cuts cleaner and feels smoother under load. Published tolerances like 0.001 inch maximum allowable arbor runout and 0.016 inch maximum diagonal table flatness gap tell you this machine is not just about the brake cartridge. It is built to cut accurately. The cast iron main table measures 20 inches by 27 inches, and with the included steel extension wings the work surface expands to support longer and wider stock more confidently.
From a shop-use standpoint, the layout is practical. The overall 69-1/8 inch width and 45 inch depth with the 36 inch fence system give you a serious work envelope, while the contractor-style base keeps the machine more approachable than a cabinet saw. Dust collection is handled through a 4 inch port, and the standard polycarbonate blade guard gives you clear sightlines while helping manage chip control at the blade area. If you work in a garage shop or a shared workspace, that combination of visibility and dust hookup is a real quality-of-life feature.
Another reason this saw stands out is configurability. SawStop calls the Contractor Saw its most configurable saw, with over 150 possible configurations. Optional add-ons mentioned across the product data include a mobile base, sliding crosscut table, router table setup, cast iron wing assembly, optional 220V conversion kit, and dust collection accessories. That means the saw can start as a strong core machine and grow with the shop instead of forcing a full replacement later. If you already think in terms of systems and accessories, this platform gives you room to build out.
Who should buy it? This is a strong fit for dedicated hobbyists, furniture builders, trim carpenters, cabinet installers, school shops, and pros who want SawStop protection in a contractor-style footprint. If you mainly cut framing lumber outdoors and need maximum portability, a smaller jobsite table saw may make more sense. If you want better stability, finer fence control, real dado capability, and the safety system that made SawStop famous, this model lands in a very smart middle ground.
Safer Cutting Without Giving Up Precision
This is the kind of saw people buy because they want confidence at the blade and accuracy at the fence. The SawStop brake system gets the attention, but the fence, table, and drive system are what make it a serious woodworking machine day after day.
- SawStop Safety System stops the blade on skin contact in less than 5 milliseconds
- 36 inch right-side rip capacity handles shelving, panels, and long rip cuts
- Poly V-ribbed belt helps reduce vibration for smoother cuts
Fence Control That Holds Its Setting
A contractor saw is only as useful as its fence system. The included T-Glide Advance setup is built for square cuts, repeatability, and quick repositioning, which is what saves time when you are bouncing between setup cuts and finish pieces.
- Heavy-gauge steel fence and rails for sure lockdown without deflection
- Three operating positions: high, low, and L-fence
- Two magnifying indicators help with precise measurement in high and low positions
Built to Grow With the Shop
One of the best things about this platform is that it does not box you in. Start with a solid core saw, then add mobility, dust collection, router table capability, or cast iron upgrades as your space and workflow change.
- SawStop lists the Contractor Saw as its most configurable saw
- Optional accessories include mobile base, sliding crosscut table, router table, and cast iron wings
- Optional 220V conversion kit is available for users who want that setup
What’s in the Box
- (1) Contractor Saw
- (1) Professional Advance Rip Fence
- (1) Professional T-Glide 36 in. Rails
- (1) Professional T-Glide Extension Table
- (2) Steel Extension Wings
- (1) Miter Gauge
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10 in. Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (1) Assembly Instructions
- (2) Hardware Packs
- (1) 3 mm Hex Key
- (1) 5 mm Hex Key
- (1) 8 mm Hex Key
- (1) Blade Spacing Adjustment Gauge
Dado brake cartridge, dado insert, optional 220V kit, mobile base, and other accessories are sold separately.
At a Glance
1.75 HPMotor Output36 in.Right Rip Capacity3-1/8 in.Max Depth at 0°225 lbsSaw Weight
Key Specifications
| Tool Type | 10 in. Contractor Table Saw |
|---|---|
| Motor Output | 1.75 HP |
| Voltage (V) | 120V |
| Current (A) | 14 A |
| Phase | Single Phase |
| Blade Diameter | 10 in. |
| Arbor Size | 5/8 in. |
| Blade Tilt | Left |
| Max Depth of Cut at 0° | 3-1/8 in. |
| Max Depth of Cut at 45° | 2-1/4 in. |
| Rip Capacity Right of Blade | 36 in. |
| Rip Capacity Left of Blade | 12 in. |
| Dado Capacity | 8 in. diameter, 29/32 in. max width |
| Dust Port Diameter | 4 in. |
| Overall Dimensions | 69-1/8 in. W x 45 in. D x 34-3/4 in. H |
| Weight (lbs) | 225 lbs |
Compatibility
Power Configuration Ships as a 120V, 14 A saw. SawStop lists an optional kit for user conversion to 220V. Blade and Dado Interface Uses a 10 in. blade on a 5/8 in. arbor and accepts up to an 8 in. dado set with the required dado brake cartridge and insert. Accessory System Supports SawStop add-ons such as a mobile base, sliding crosscut table, router table options, cast iron wing assembly, and dust collection accessories.
Built For
WoodworkingCabinetryFurniture BuildingFinish CarpentryRemodeling ShopsDIY / HobbyistRip CuttingDado Joinery
Pro Tip
If you plan to cut grooves or rabbets regularly, order the dado brake cartridge and dado insert at the same time as the saw. The saw can handle an 8 inch dado stack, but you need those specific parts before you can actually run one.
Warranty & Support
Two year warranty with saw registration.
Tool Nut’s Take
Tool Nut’s Take
Why the SawStop CNS175-ATGP36 Contractor Saw earns its keep
This is the sweet spot for the buyer who wants real fence performance, real dado capability, and the SawStop brake system without jumping straight to a full cabinet saw.
- Who it’s for: Woodworkers, cabinet guys, trim carpenters, school shops, and serious DIY users who want a safer 10 inch table saw for daily shop work.
- Why it stands out: The safety system gets the headlines, but the 36 inch T-Glide fence, solid cut capacity, and upgrade path are what make this one worth owning long term.
- Worth knowing: It ships ready for 120V, and it includes a standard brake cartridge. If dado work is on your list, you still need the dedicated dado brake cartridge and insert.
Common Questions
- Can this saw run on 120V? Yes. The CNS175-ATGP36 is listed as a 1.75 HP, 120V, 14 A saw.
- Can it be converted to 220V? Yes. SawStop states that user configuration to 220V is available with an optional kit sold separately.
- Does it accept a dado stack? Yes. It accepts up to an 8 in. dado set with a maximum width of 29/32 in., but it requires a dado brake cartridge and insert.
- What is the rip capacity? With the included 36 in. T-Glide fence system, maximum rip capacity is 36 in. to the right of the blade and 12 in. to the left.
