- Loads tested and code listed for 1-1/2 in. and 2 -1/2 in. power-driven or hand-installed nails
- Two-hour fire rating applies to 2×4 or thicker walls
- Innovative top-flange design for back-to-back installation on 2×6 (min.) walls
- Space for two layers of 5/8-in. drywall after framing
- Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
- Nominal joist size: 2×12
- Seat width: 1-9/16 in.
- Made from 12-gauge steel
- Galvanized (G90) for corrosion resistance

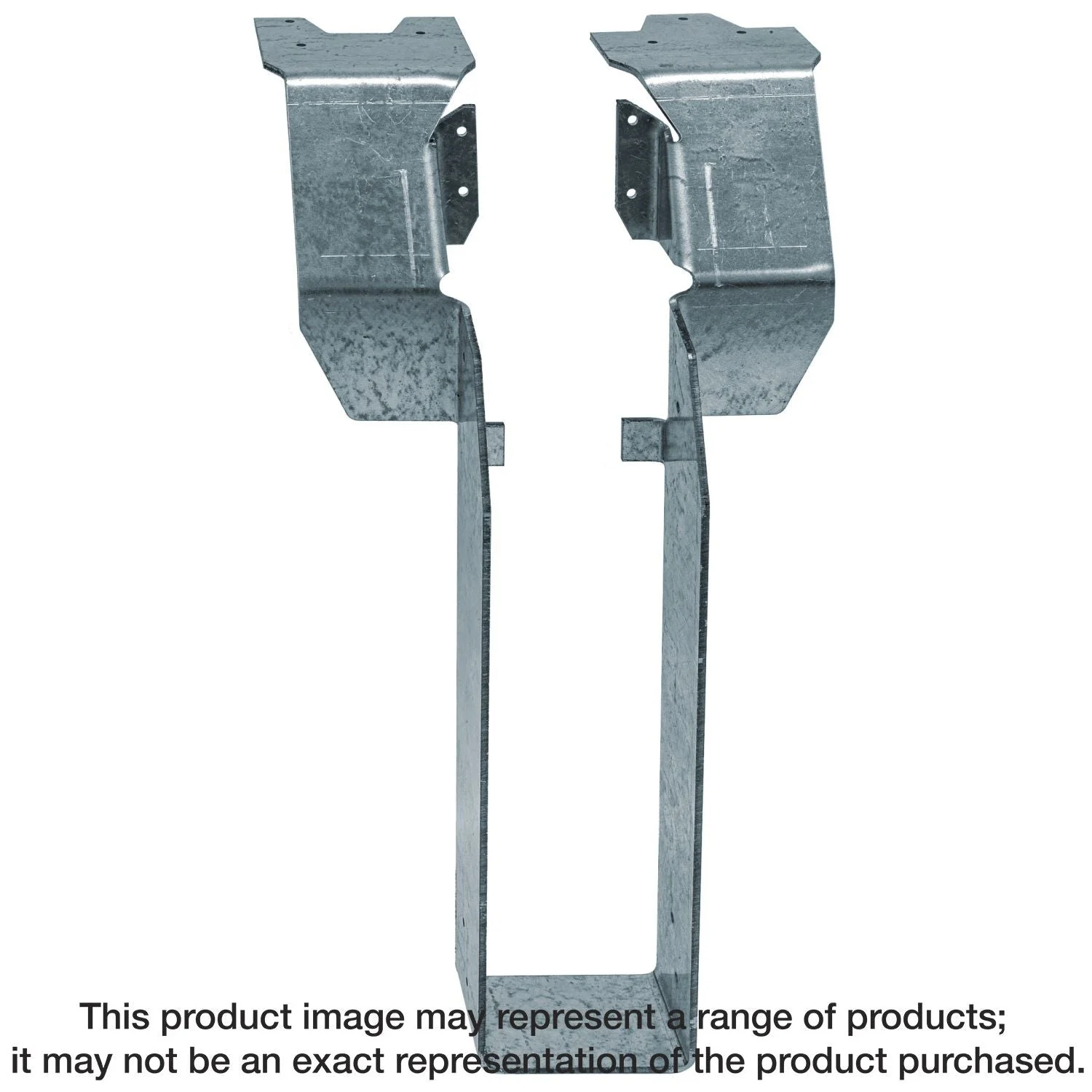

Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie DGT™ fire wall hanger is load tested and fire rated. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.
- Loads tested and code listed for 1-1/2 in. and 2 -1/2 in. power-driven or hand-installed nails
- Two-hour fire rating applies to 2×4 or thicker walls
- Innovative top-flange design for back-to-back installation on 2×6 (min.) walls
- Space for two layers of 5/8-in. drywall after framing
- Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
- Nominal joist size: 2×12
- Seat width: 1-9/16 in.
- Made from 12-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: Install with (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top; (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face; and (6) 0.148 in. x 1-1/2 in. nails in the joist
