- DHU hangers in widths of 2-1/2 in. or greater may be ordered with one flange concealed
- Available for order skewed up to 45°
- Testing verifies that the DHU hangers do not reduce the two-hour fire wall assembly rating in either 2×4 or 2×6 walls
- DHU fire wall hangers are code listed for structural use under ICC-ES ESR-2552
- Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
- If hangers are installed on both sides of the wall, then it must be a 2×6 wall
- Seat width: 1-9/16 in.
- Height: 9-1/8 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance

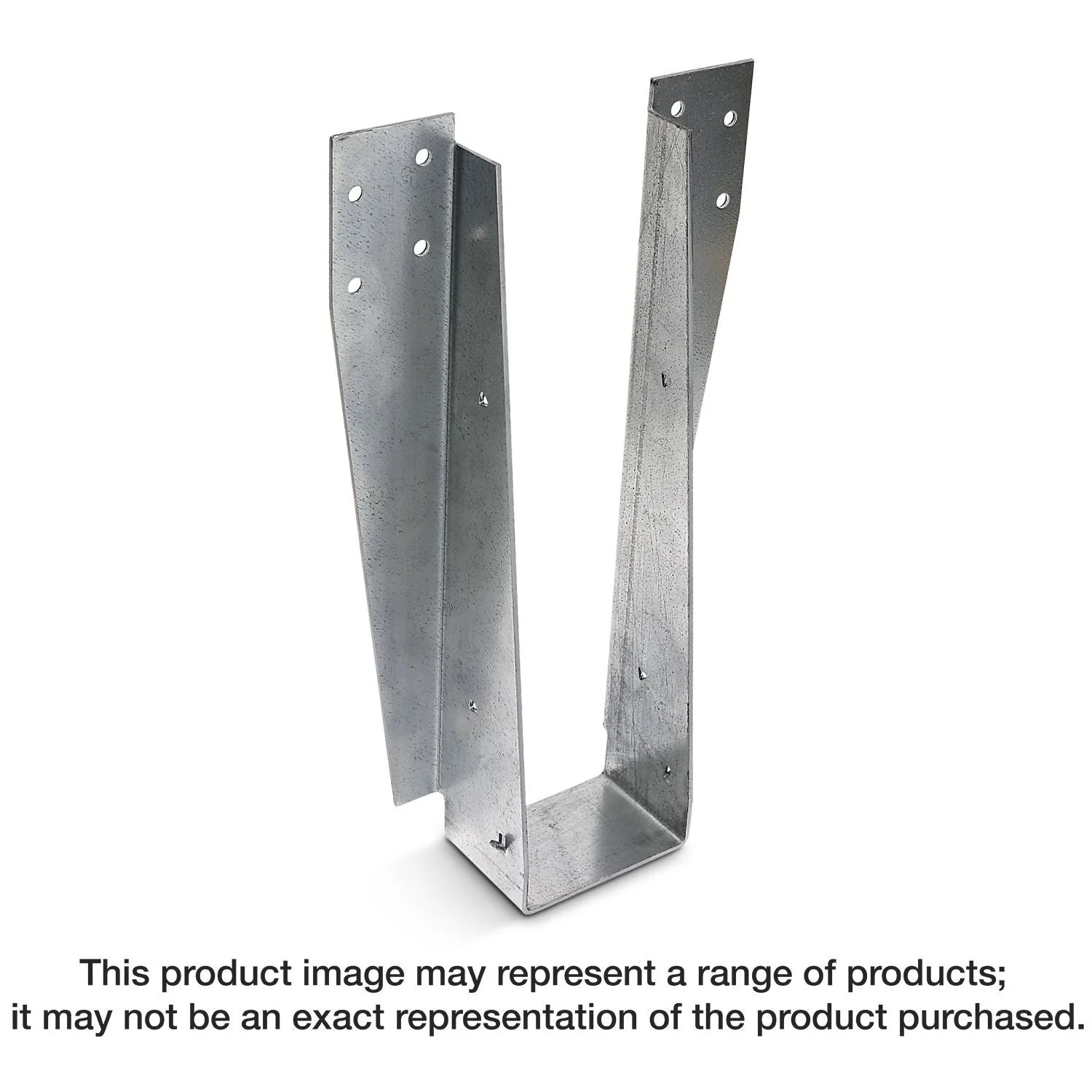

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHU face-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.
- DHU hangers in widths of 2-1/2 in. or greater may be ordered with one flange concealed
- Available for order skewed up to 45°
- Testing verifies that the DHU hangers do not reduce the two-hour fire wall assembly rating in either 2×4 or 2×6 walls
- DHU fire wall hangers are code listed for structural use under ICC-ES ESR-2552
- Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
- If hangers are installed on both sides of the wall, then it must be a 2×6 wall
- Seat width: 1-9/16 in.
- Height: 9-1/8 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with (2) 0.148 in. x 1-1/2 in. nails in the joist and (8) 1/4 in. x 3-1/2 in. Strong Drive SDS Heavy-Duty Connector screws in the face (screws included)
