Simpson Strong-Tie EB316WD316R175 EB-TY EB316W Premium Hidden Deck Fastener w/ 2-1/4-in. Type 316 Screws, 175-Pack

• Patented EB-GUIDE predrill guide provides precise fastener angle alignment for consistent biscuit installations

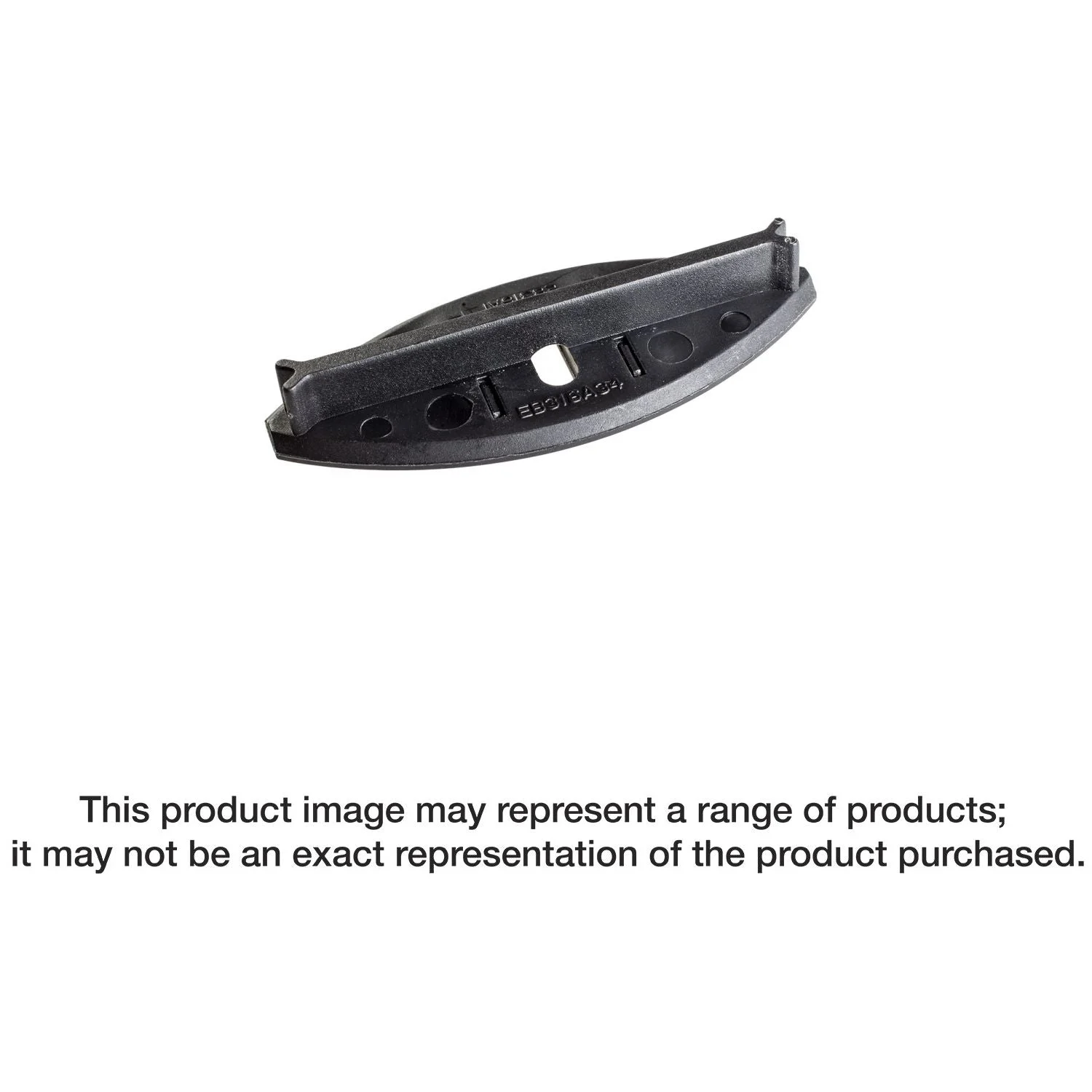

• Stainless-steel reinforced biscuit provides strength and increased pullover resistance
• Underside keel provides consistent fastener positioning
• Radius sides and chamfered edges provide easier alignment and faster installation
• Type 316 stainless-steel trim-head, 6-lobe screws with black-painted heads provide a concealed finish and blend in with EB-TY biscuit
• Decking thickness: 3/4 in.
• Spacing requirement: 3/16 in.
• Use for 3/4-in. or greater kiln-dried decking with moisture content less than air dry (approx. 19%)
• Includes: EB-TY Premium biscuits, stainless-steel screws, Ipê plugs for first and last board installations, EB-GUIDE predrilling tool, 1/8 in. quick-release impact-ready drill bit, T-15 6-lobe driver bit for reduced cam outs
• Quantity: 175

The EB-TY Premium Hidden Deck-Fastening System is the ideal solution that blends strength with ease of installation in a fastener that won’t detract from the deck’s finished appearance. Simpson Strong-Tie has redesigned the award-winning EB-TY Hidden Deck-Fastening System by integrating a Type 300 series stainless-steel reinforcing plate that adds stiffness to hold boards in place securely, yet maintains flexibility when seasonal contraction and expansion occur. Combine this innovative new design with our EB-GUIDE predrilling tool (included), and you have a system that not only provides hidden strength, but is also easy to install.

• Patented EB-GUIDE predrill guide provides precise fastener angle alignment for consistent biscuit installations
• Stainless-steel reinforced biscuit provides strength and increased pullover resistance
• Underside keel provides consistent fastener positioning
• Radius sides and chamfered edges provide easier alignment and faster installation
• Type 316 stainless-steel trim-head, 6-lobe screws with black-painted heads provide a concealed finish and blend in with EB-TY biscuit
• Decking thickness: 3/4 in.
• Spacing requirement: 3/16 in.
• Use for 3/4-in. or greater kiln-dried decking with moisture content less than air dry (approx. 19%)
• Includes: EB-TY Premium biscuits, stainless-steel screws, Ipê plugs for first and last board installations, EB-GUIDE predrilling tool, 1/8 in. quick-release impact-ready drill bit, T-15 6-lobe driver bit for reduced cam outs
• Quantity: 175

Install With: Type 316 stainless-steel screw, included
