- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Nominal beam width: 6x
- Nominal post size: 6x
- Made from 7-gauge steel
- Straps rotated 90° to be in line with wall framing
- Simpson Strong-Tie gray paint finish

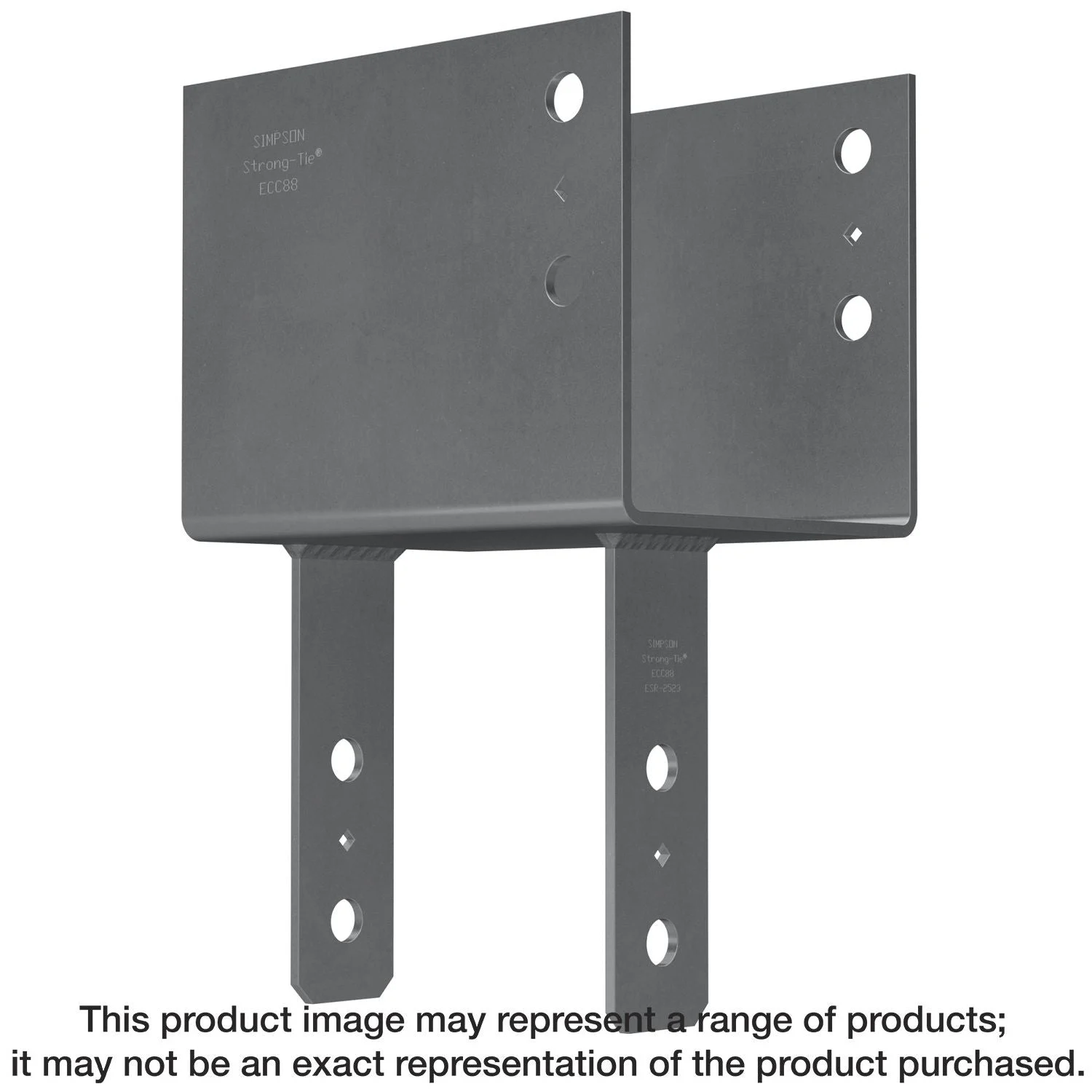

The Simpson Strong-Tie ECC column cap is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Nominal beam width: 6x
- Nominal post size: 6x
- Made from 7-gauge steel
- Straps rotated 90° to be in line with wall framing
- Simpson Strong-Tie gray paint finish
Install With: Install with (4) 5/8 in. diameter machine bolts
