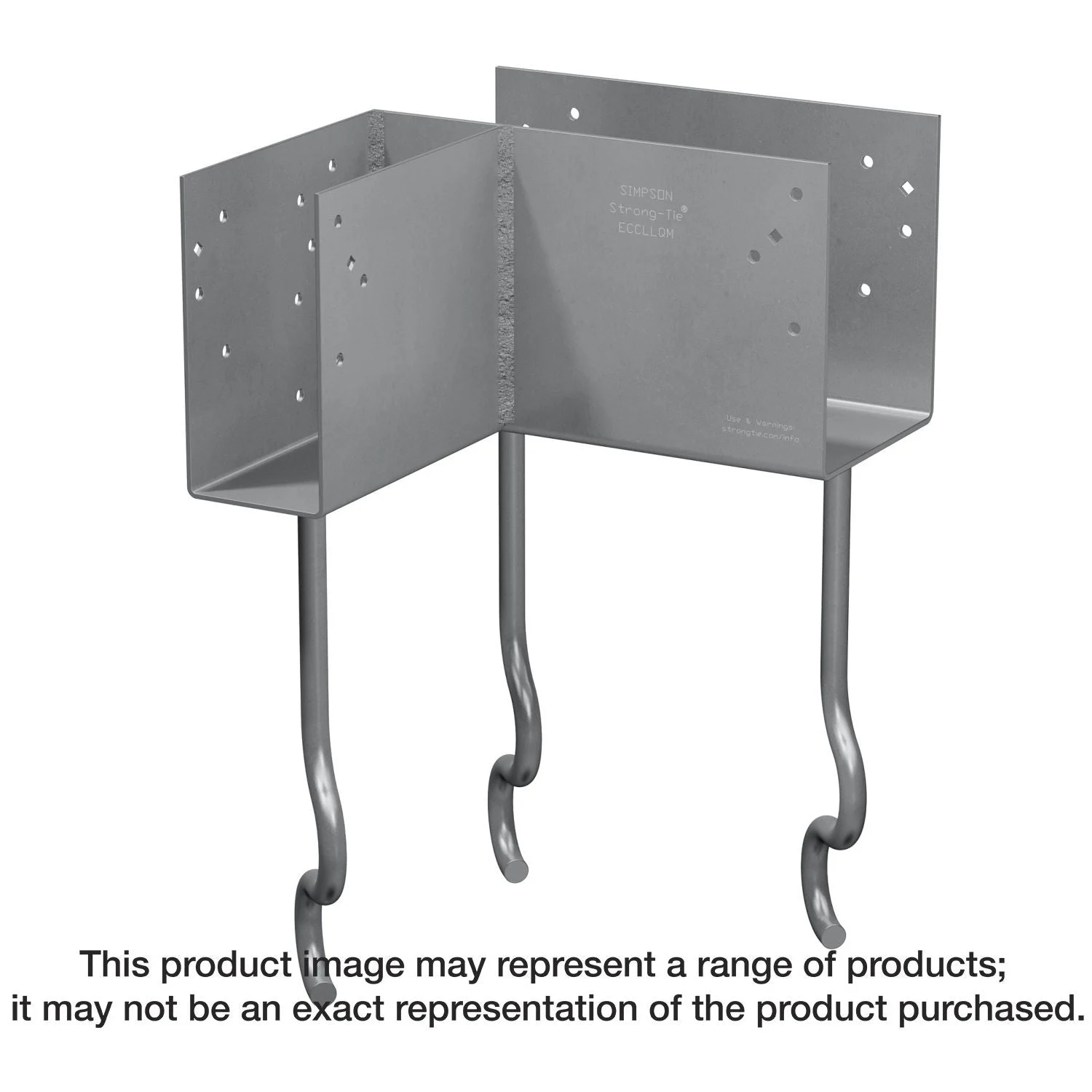

Simpson Strong-Tie ECCLQM5.50G-KT ECCLQM 5-1/2-in. L-Shape End Column Cap for Masonry w/ SDS Screws

• MSTQM straps to make the connection from the ECCLQM to the wall framing
• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• SSTB offset allows flush installation to edge of pier
• SSTBs spaced to fit in standard CMU cells
• 5-1/2 in. main channel and side stirrup widths
• Main channel length: 11-1/2 in.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Fasten with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating

The ECCLQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQM-KT is intended for use at the building corners.

• MSTQM straps to make the connection from the ECCLQM to the wall framing
• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• SSTB offset allows flush installation to edge of pier
• SSTBs spaced to fit in standard CMU cells
• 5-1/2 in. main channel and side stirrup widths
• Main channel length: 11-1/2 in.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Fasten with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating

Install With: (32) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
