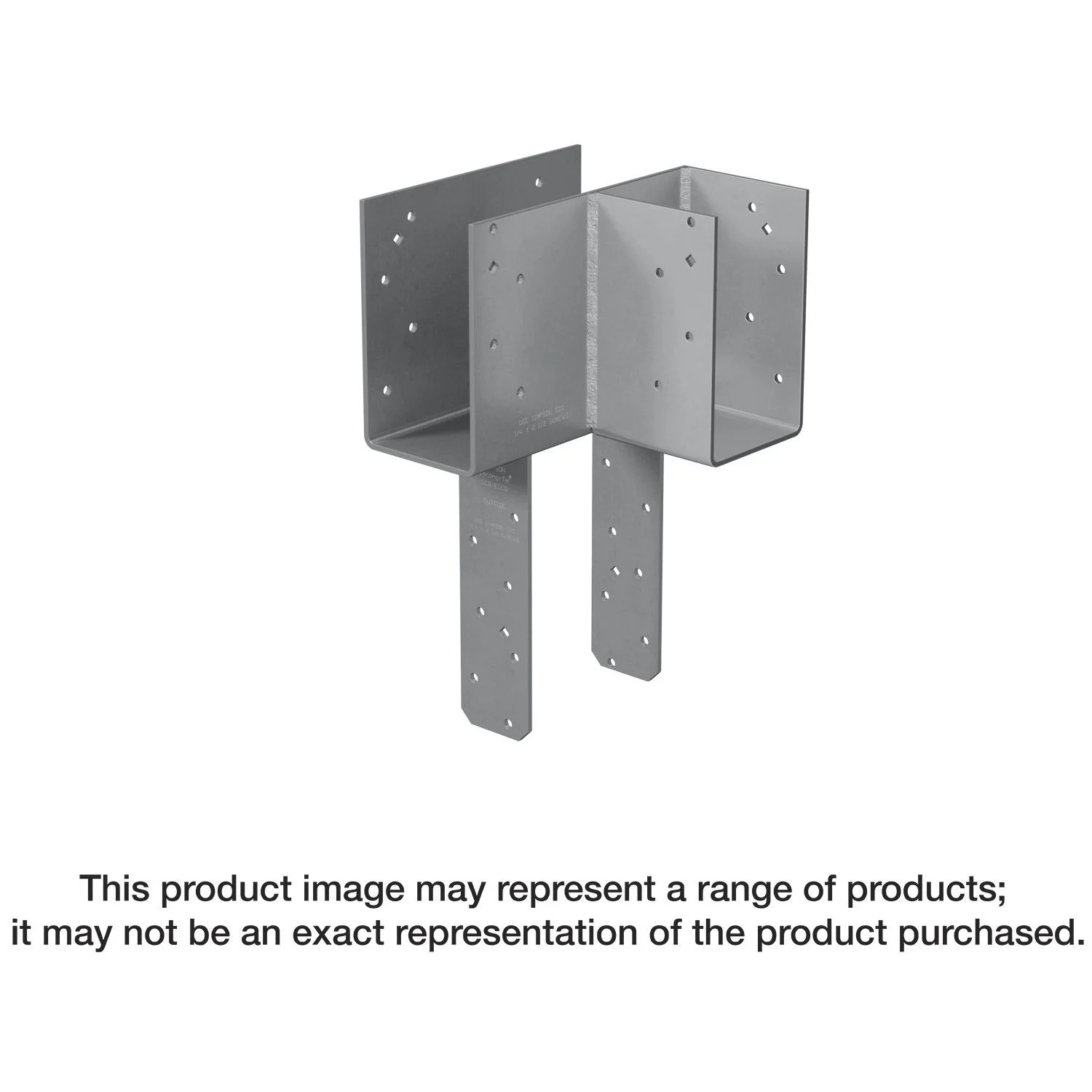

Simpson Strong-Tie ECCLRQ444SDS ECCLRQ L-Shape End Column Cap for 4x Beams, 4x Post w/ SDS Screws, Skewed Right

• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• Diamond holes to provide temporary fastening
• Right direction; order ECCLLQ model for left direction
• Nominal member sizes: 4x main beam, 4x post, 4x side beam
• Made from 7-gauge steel
• Simpson Strong-Tie gray paint finish

The Simpson Strong-Tie ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.

• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• Diamond holes to provide temporary fastening
• Right direction; order ECCLLQ model for left direction
• Nominal member sizes: 4x main beam, 4x post, 4x side beam
• Made from 7-gauge steel
• Simpson Strong-Tie gray paint finish

Install With: Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
