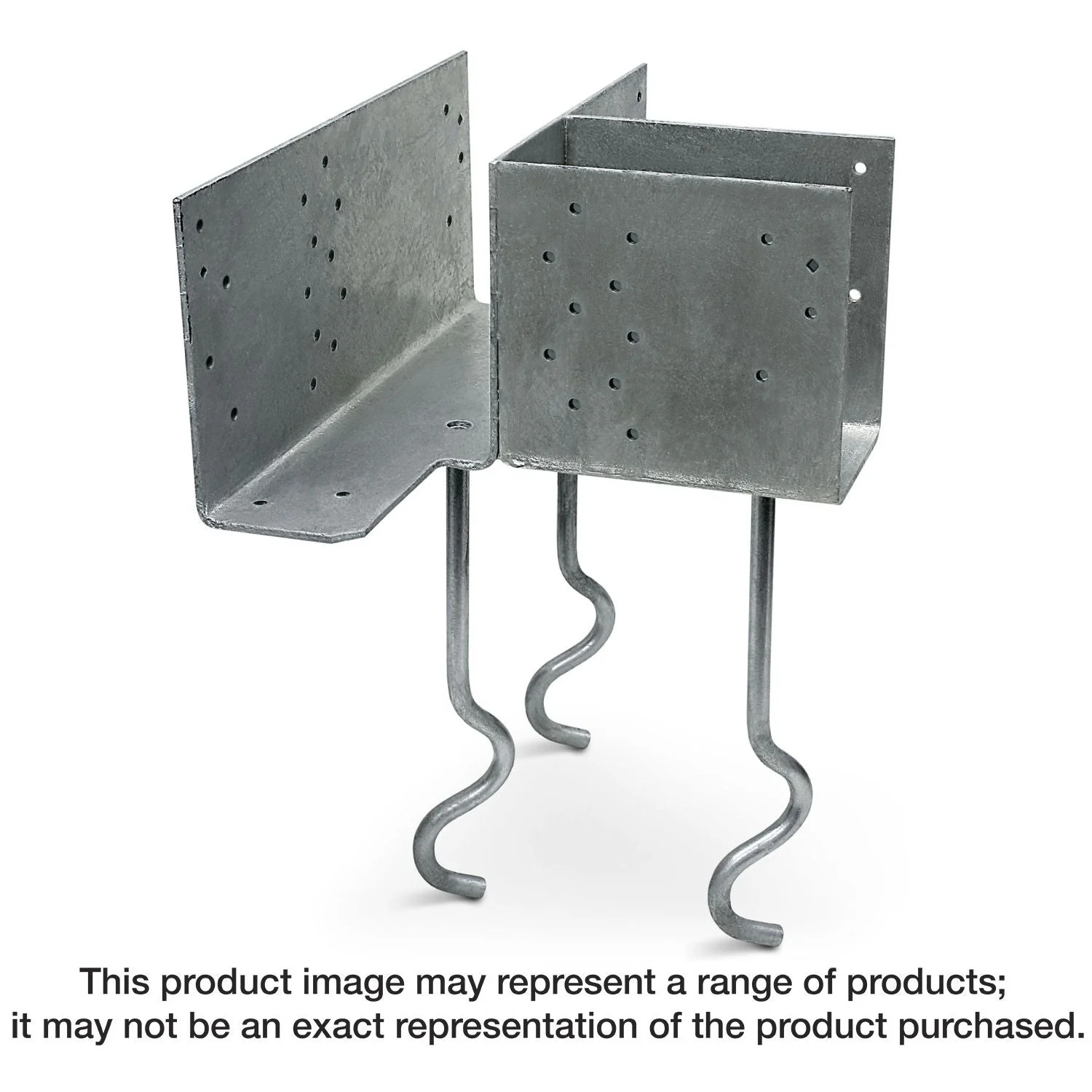

Simpson Strong-Tie ECCLRQMD3.62G-KT ECCLQMD Hot-Dip Galvanized L-Shape Embedded Column Cap for 3-5/8 in Beam, Skewed Right

• Ideal for applications where a member is needed off the corner of the structure, such as a deck joist/beam.
• Right direction. Order ECCLLQMD for left direction.
• Main channel width: 3-5/8 in.
• Main channel length: 16-1/2 in.
• 7 ga.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

ECCLQM embedded column caps are designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seats and unique SSTB-style anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQMD is a variation that incorporates an additional seat to support a third member at the corner connection.

• Ideal for applications where a member is needed off the corner of the structure, such as a deck joist/beam.
• Right direction. Order ECCLLQMD for left direction.
• Main channel width: 3-5/8 in.
• Main channel length: 16-1/2 in.
• 7 ga.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
