- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening
- Nominal beam width: 4x
- Nominal post size: 4x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish

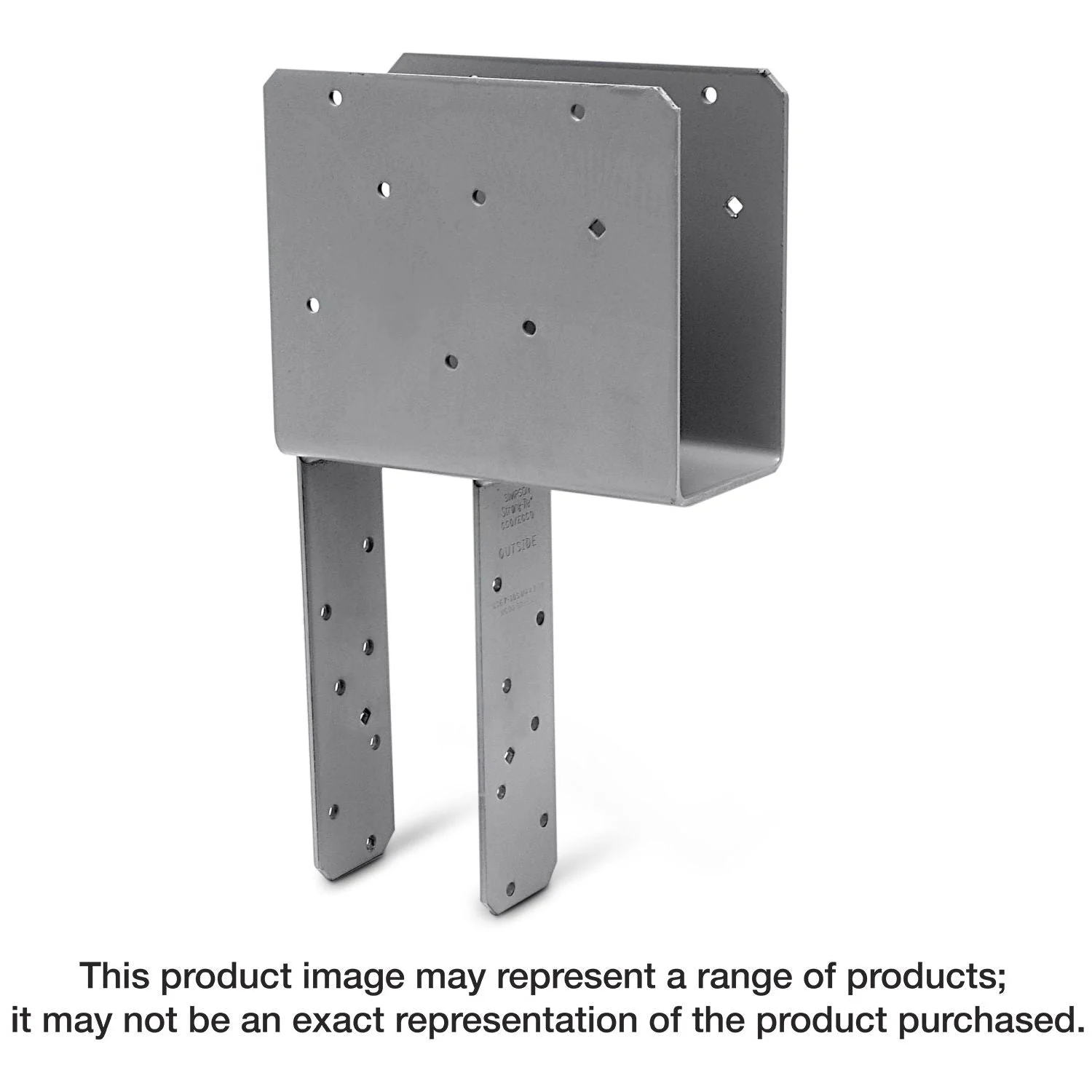

The ECCQ is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The ECCQ uses Strong-Drive SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening
- Nominal beam width: 4x
- Nominal post size: 4x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Install With: Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
