- Connects nominal 4×6 girder to 8-in. wide foundation wall with 2x sill plate
- A 2x mudsill on top of the hanger is required to achieve published table loads
- Girder-seat width: 3-9/16 in.
- Saddle width: 8-1/16 in.
- 1-1/2 in. clearance hole accommodates rebar or anchor
- Made from 12-gauge steel
- Simpson Strong-Tie gray paint

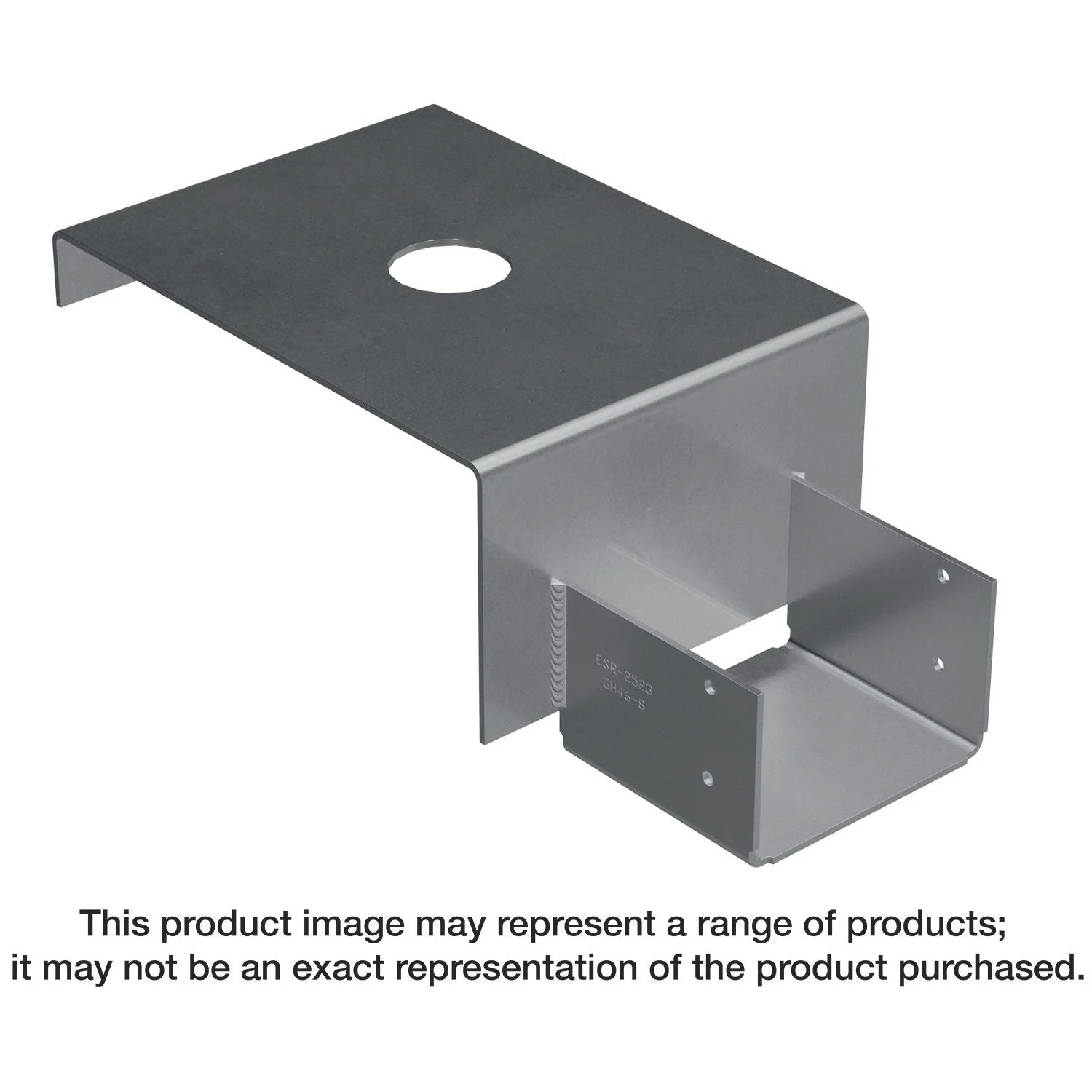

Masonry and concrete connectors create strong wood-to-masonry and wood-to-concrete connections. The Simpson Strong-Tie selection of masonry hangers come in a variety of sizes and strengths to meet most design needs. Many solutions employ Simpson Strong-Tie fasteners to make the connection complete. The GH hanger series provides a girder-to-foundation wall connection.
- Connects nominal 4×6 girder to 8-in. wide foundation wall with 2x sill plate
- A 2x mudsill on top of the hanger is required to achieve published table loads
- Girder-seat width: 3-9/16 in.
- Saddle width: 8-1/16 in.
- 1-1/2 in. clearance hole accommodates rebar or anchor
- Made from 12-gauge steel
- Simpson Strong-Tie gray paint
Install With: Install with (4) 0.162 in. x 3-1/2 in. nails
