- Efficient design that provides a cost-effective options for high-load applications
- Available for special order to accommodate sloped and/or skewed members
- Nominal joist size: 4×16
- Made from 10-gauge steel
- Galvanized (G90) for extra corrosion resistance

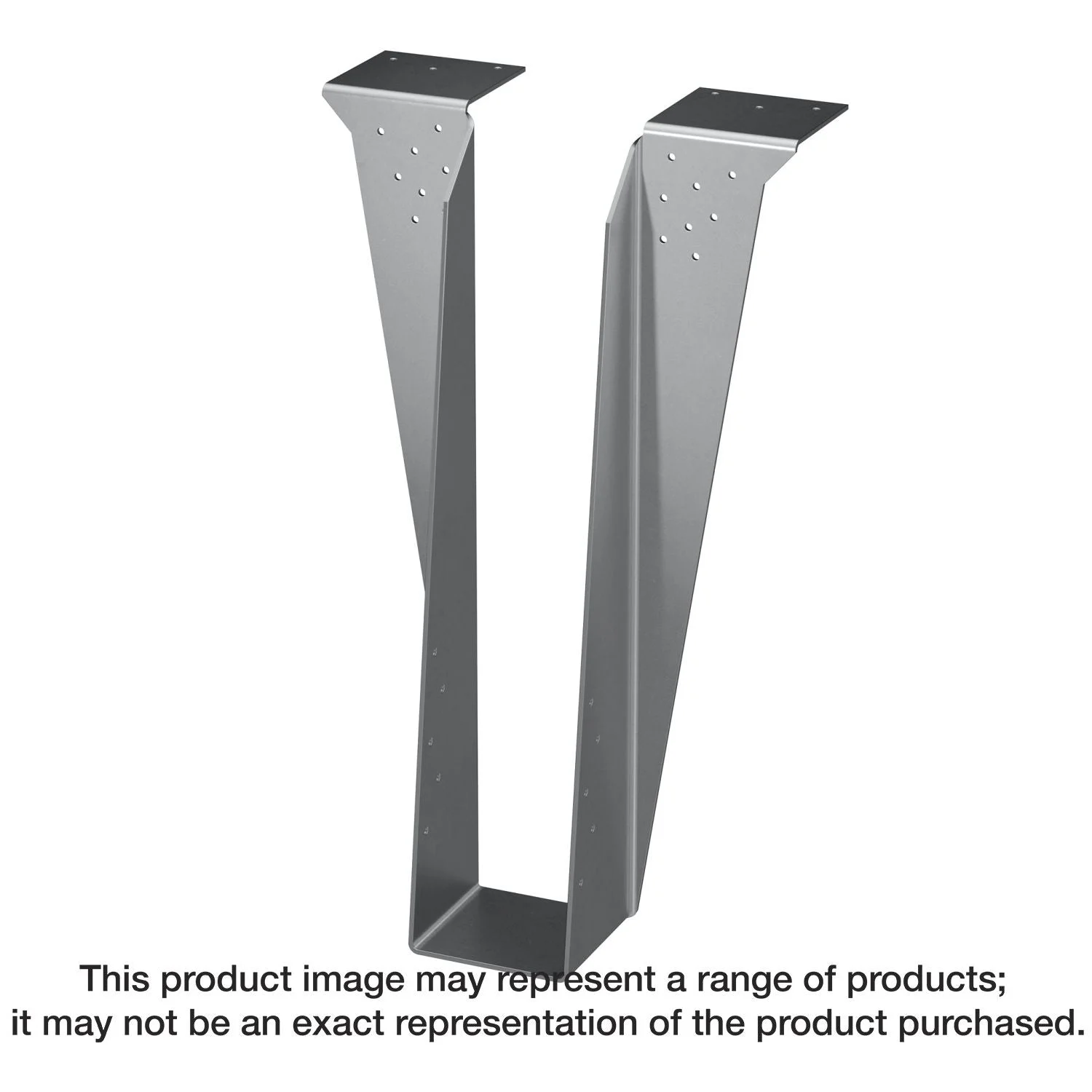

The HB is a top-flange hanger designed to carry medium to high loads for solid sawn and engineered wood applications. This heavy beam hanger features a full-height joist flange that captures the top chord of the joist to prevent rotation. With its one-piece design, the HB provides a cost-effective solution compared to welded hangers.
- Efficient design that provides a cost-effective options for high-load applications
- Available for special order to accommodate sloped and/or skewed members
- Nominal joist size: 4×16
- Made from 10-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist
