- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
- Do not bend or remove tabs
- Joist size: nominal 4×10, 3-1/2 in. glulam
- Seat width: 3-5/8 in.
- Hanger height: 9-1/16 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance

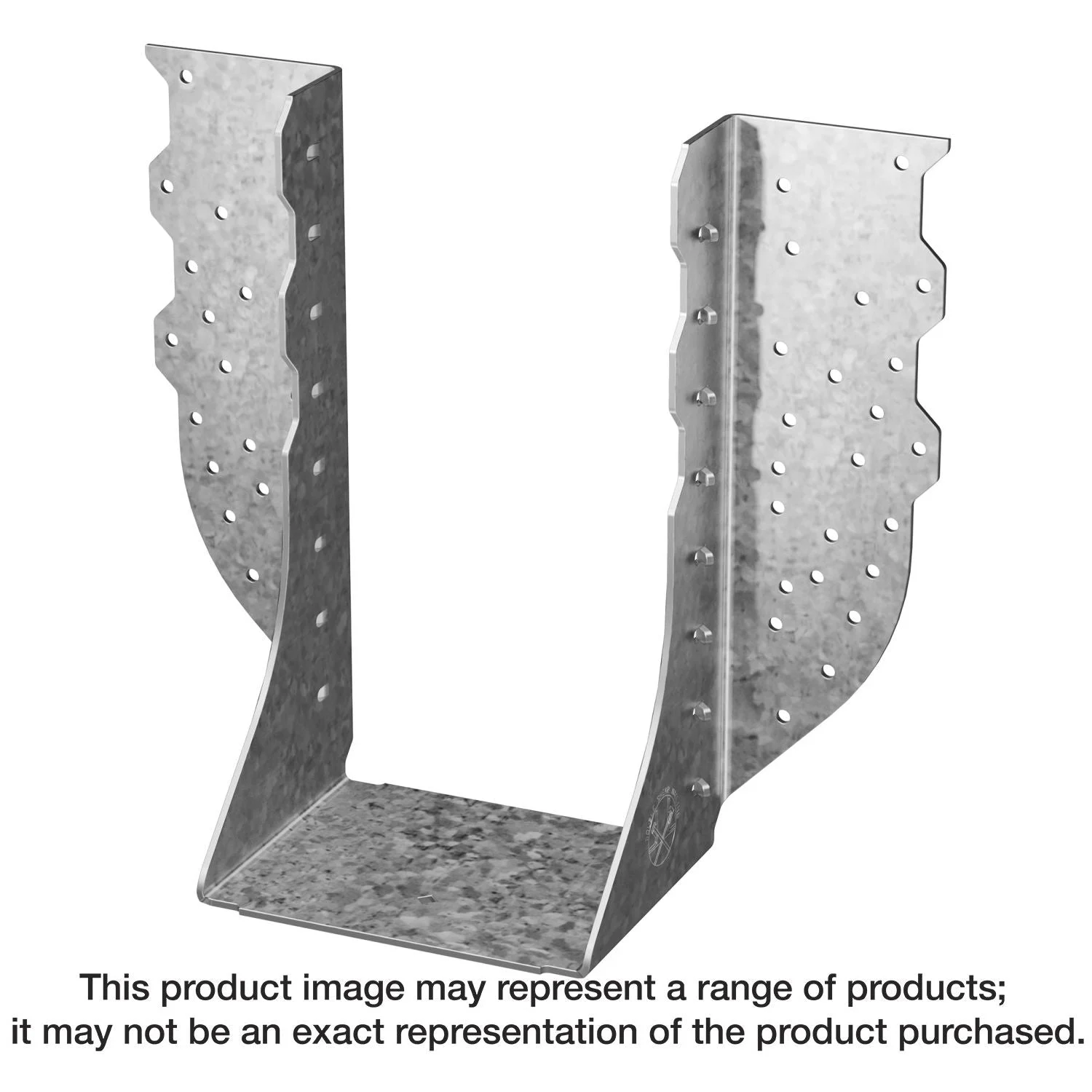

The HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.
- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
- Do not bend or remove tabs
- Joist size: nominal 4×10, 3-1/2 in. glulam
- Seat width: 3-5/8 in.
- Hanger height: 9-1/16 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 0.162 in. x 3-1/2 in. common nails
