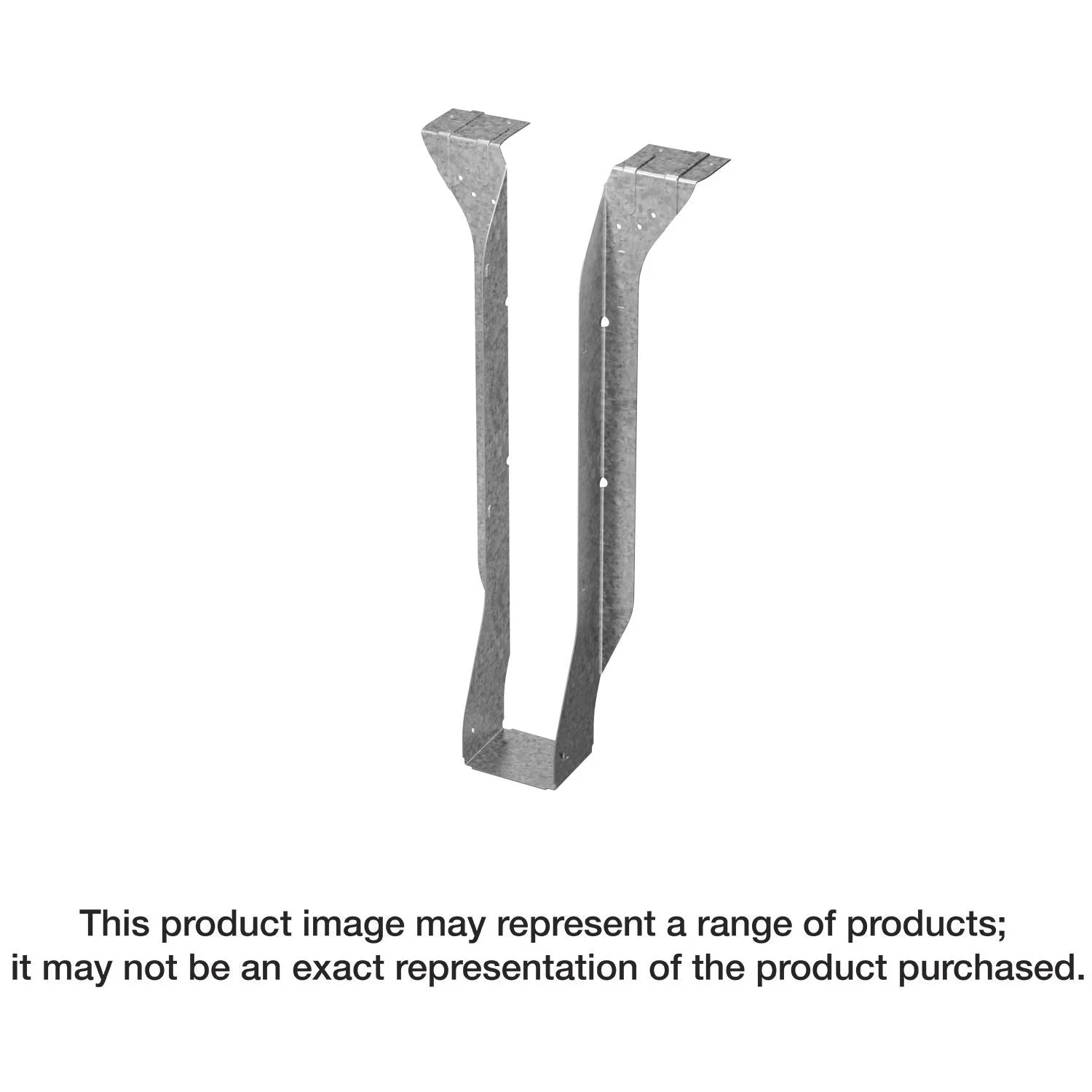

Simpson Strong-Tie HIT420 HIT Galvanized Top-Flange Joist Hanger for 3-1/2-in. x 20-in. Engineered Wood

• Time-saving PAN nailing
• Features two face nails to allow for a higher uplift
• Cost-effective solution for standard 90° connections in comparison to welded hangers
• Seat width: 3-9/16 in.
• Actual joist size: 3-1/2 in. x 20 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

The HIT is designed for standard 90° connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting. The HIT also features extra triangle holes to allow higher uplift loads.

• Time-saving PAN nailing
• Features two face nails to allow for a higher uplift
• Cost-effective solution for standard 90° connections in comparison to welded hangers
• Seat width: 3-9/16 in.
• Actual joist size: 3-1/2 in. x 20 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
