- Built-in notch ensures correct alignment
- Supports up to a 2 in. gap between framing members
- Resists in-plane lateral forces
- Simplified installation using Strong-Drive SDS Heavy-Duty Connector screws (included)
- Angle dimensions: 4-1/4 in. height x 7-1/4 in. length x 2-3/4 in. depth
- Made from 12-gauge steel
- Zinc Galvanized (G90) for corrosion resistance

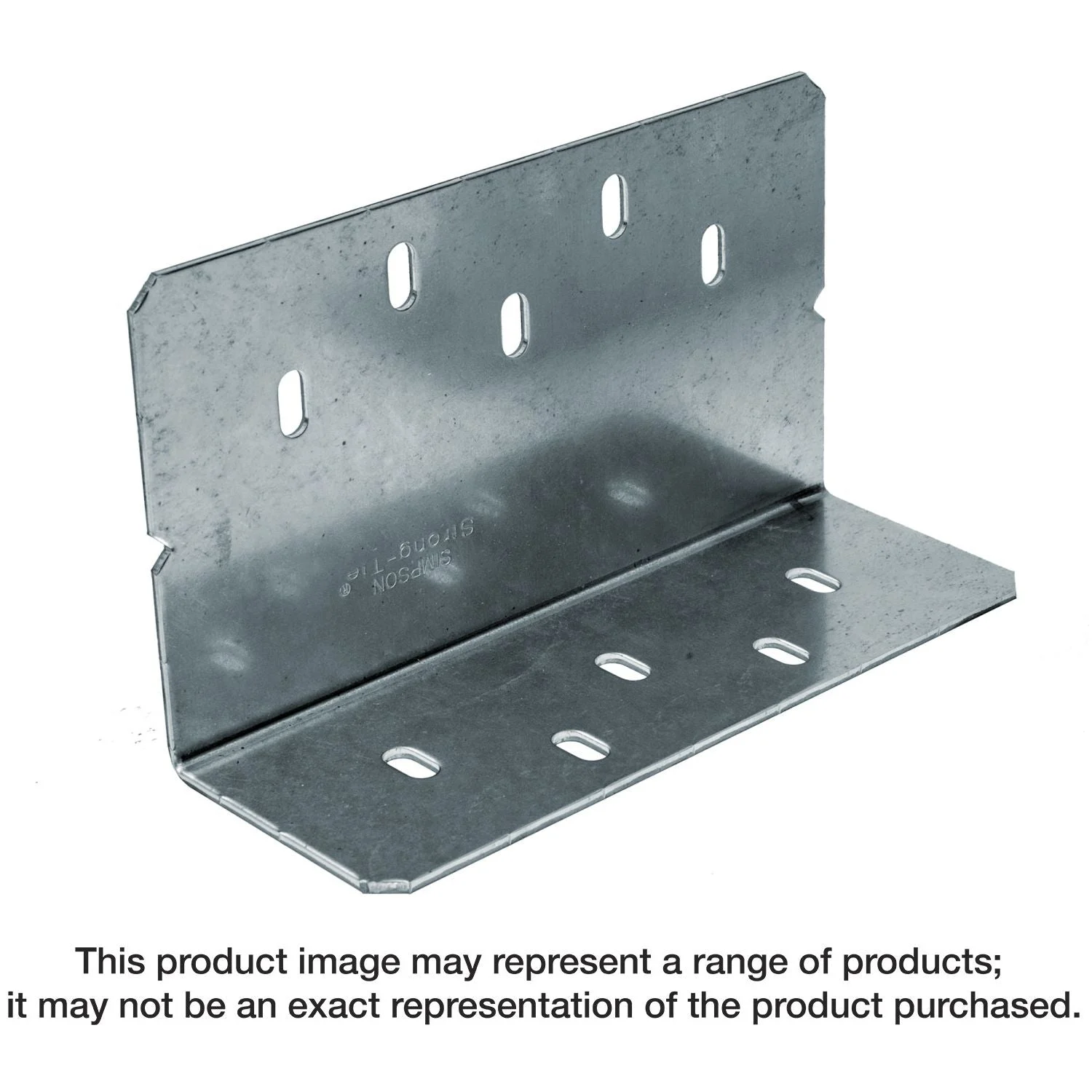

The Simpson Strong-Tie HSLQ™ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer. The angle offers versatility by allowing up to a 2 in. gap between the structural members and easy installation with Strong-Drive SDS Heavy-Duty Connector screws that are included with the HSLQ. The HSLQ is manufactured with a gap indication notch to make proper installation easy.
- Built-in notch ensures correct alignment
- Supports up to a 2 in. gap between framing members
- Resists in-plane lateral forces
- Simplified installation using Strong-Drive SDS Heavy-Duty Connector screws (included)
- Angle dimensions: 4-1/4 in. height x 7-1/4 in. length x 2-3/4 in. depth
- Made from 12-gauge steel
- Zinc Galvanized (G90) for corrosion resistance
Install With: Installs with (10) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included) (Model: SDS25212)
