- HSUR = skewed right
- Can accommodate joists skewed 40 to 50 degrees
- Angled nail slots direct nails for proper installation
- The joist end may be square cut or bevel cut
- Nominal joist size: Double 2×10
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance

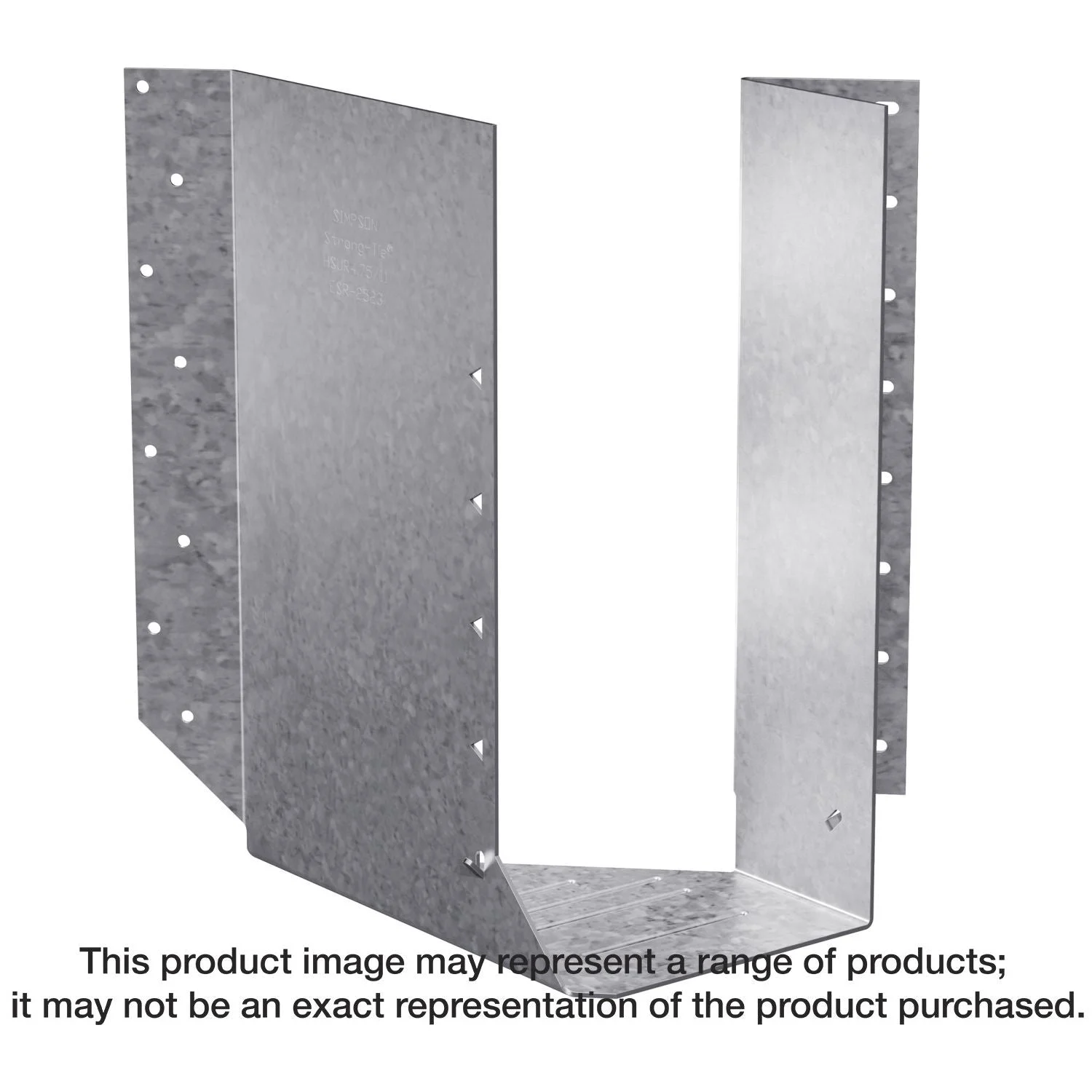

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HSUL/HSUR hangers provide a 45° connection between a joist and header.
- HSUR = skewed right
- Can accommodate joists skewed 40 to 50 degrees
- Angled nail slots direct nails for proper installation
- The joist end may be square cut or bevel cut
- Nominal joist size: Double 2×10
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 16d common nails and 16d x 2-1/2 in. nails
