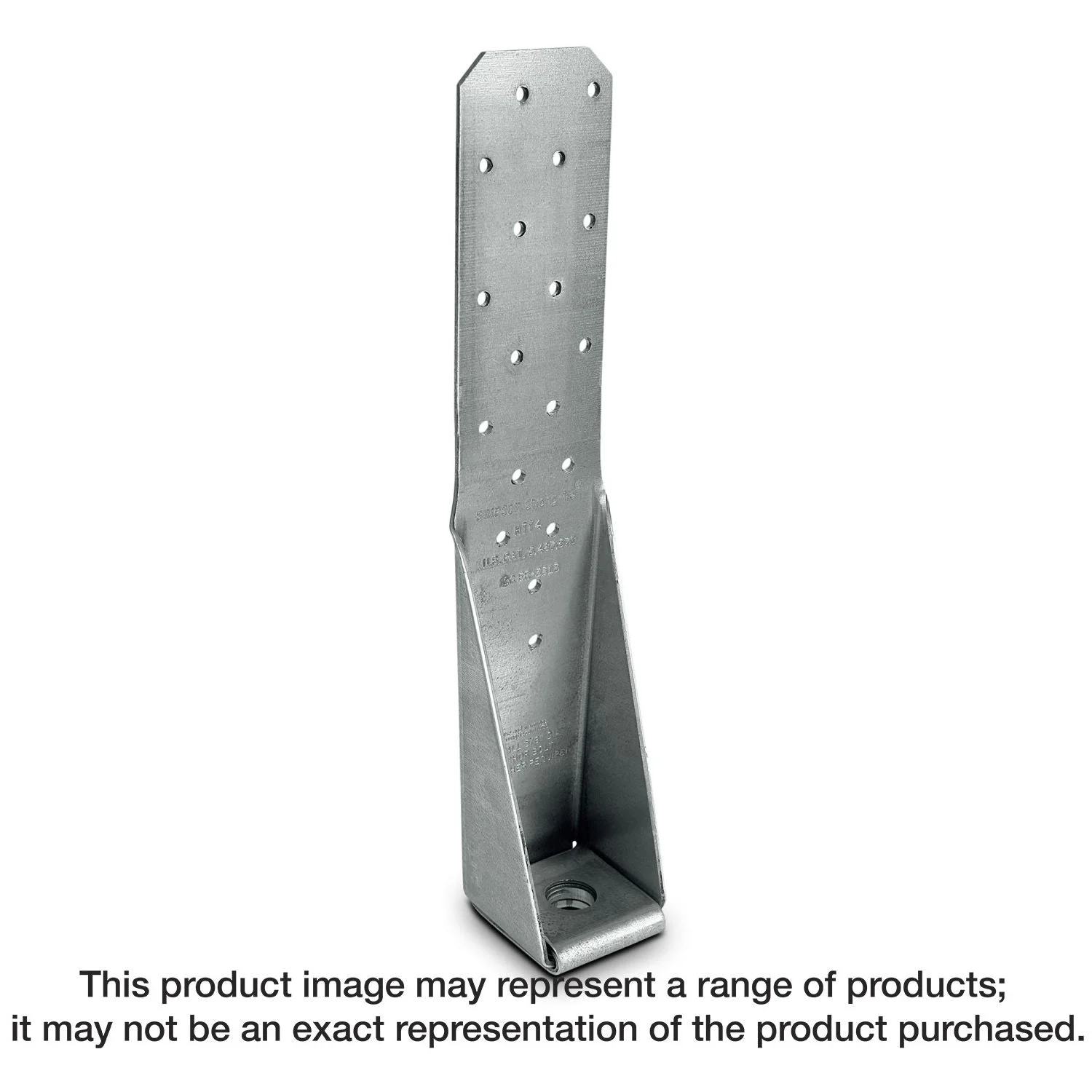

Simpson Strong-Tie HTT5KT HTT 16-in. Heavy Tension Tie for 5/8-in. Anchor with Bearing Plate and Screws

• Ideal for retrofit or new construction projects
• Can be installed with cast-in-place or post-installed anchor bolts
• Four-ply formed steel provides increased tension capacity
• Anchor bolt washers not required
• 2-1/2-in. width x 16-in. length
• Anchor rod diameter: 5/8 inch
• HTT5KT is sold as a kit with the holdown, BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive SD Connector screws
• Made from 11-gauge steel
• Galvanized (G90) for corrosion resistance

The Simpson Strong-Tie HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.

• Ideal for retrofit or new construction projects
• Can be installed with cast-in-place or post-installed anchor bolts
• Four-ply formed steel provides increased tension capacity
• Anchor bolt washers not required
• 2-1/2-in. width x 16-in. length
• Anchor rod diameter: 5/8 inch
• HTT5KT is sold as a kit with the holdown, BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive SD Connector screws
• Made from 11-gauge steel
• Galvanized (G90) for corrosion resistance

Install With: (1) BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive SD Connector screws (included)
