- Four-fold seat to reduce deflection
- Tapered base optimized for increased strength and reduced deflection
- Optimal nailing pattern reduces splitting at the end of the post and maximizes individual fastener capacity
- Designed with a 0.185-in. fastener hole diameter, making it compatible with both nails and SD Connector screws
- 3-in. width x 20-1/4-in. length
- Anchor rod diameter: 3/4 inch
- Requires one standard 3/4-in. cut washer (not included)
- Made from 10-gauge steel
- Galvanized (G90) for corrosion resistance

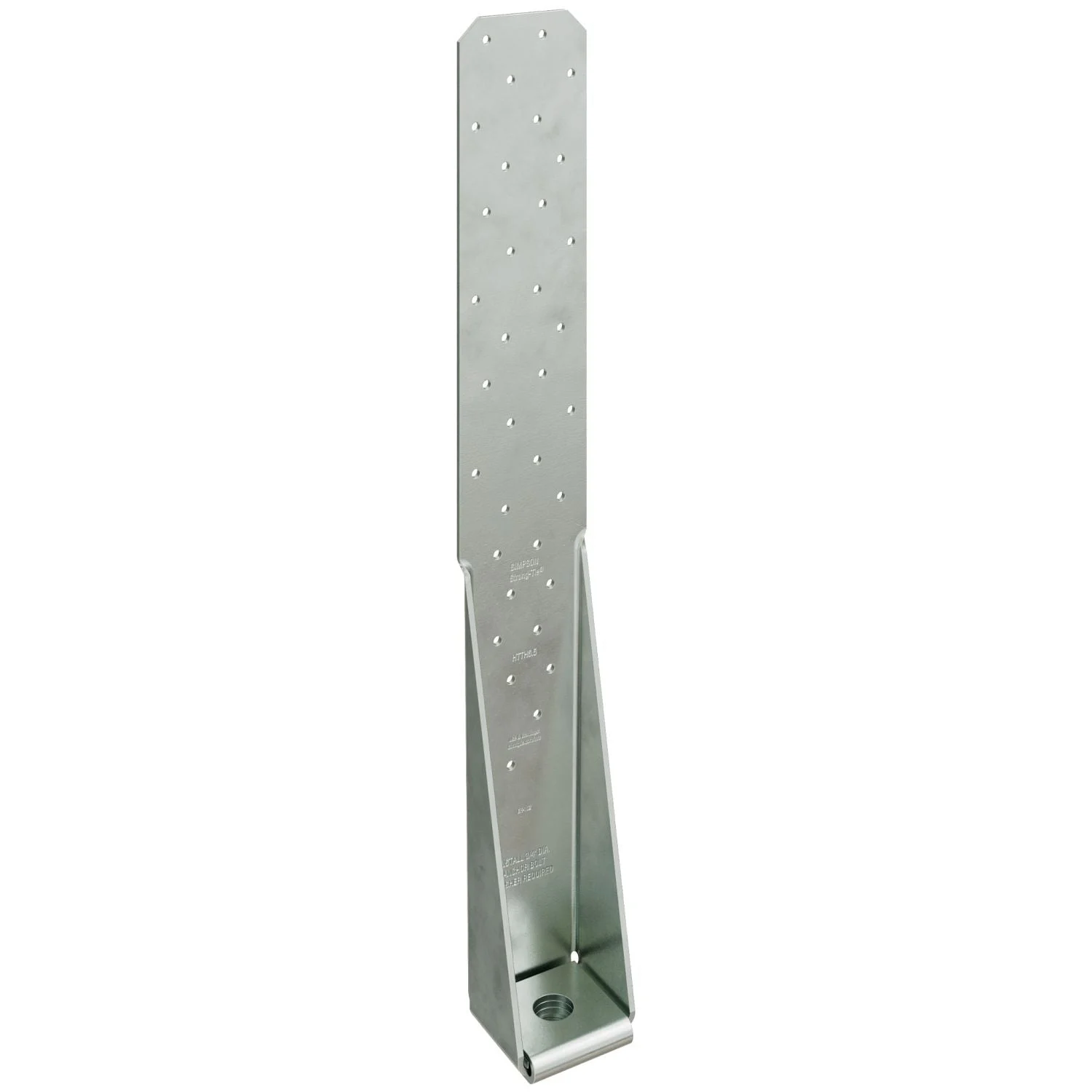

The Simpson Strong-Tie HTTH™ heavy tension tie is an ideal solution for residential construction as well as light-framed wood commercial buildings. Tested per AC 155, the HTTH is the first nailed-on holdown to achieve up to 7,650 lb. allowable load, making it an economical solution when heavier loads are required. This heavy, single-piece formed tension tie is fastened with nails (in standard sizes for pneumatic nailers) or Strong-Drive SD Connector screws.
- Four-fold seat to reduce deflection
- Tapered base optimized for increased strength and reduced deflection
- Optimal nailing pattern reduces splitting at the end of the post and maximizes individual fastener capacity
- Designed with a 0.185-in. fastener hole diameter, making it compatible with both nails and SD Connector screws
- 3-in. width x 20-1/4-in. length
- Anchor rod diameter: 3/4 inch
- Requires one standard 3/4-in. cut washer (not included)
- Made from 10-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: (1) 3/4-in. anchor bolt AND (34) 0.148 x 2-1/2-in. nails, 0.162 x 2-1/2-in. nails, #10 x 1-1/2-in. Strong-Drive SD screws or #10 x 2-1/2-in. Strong-Drive SD screws
