- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Nominal joist size: Double 2×6
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance

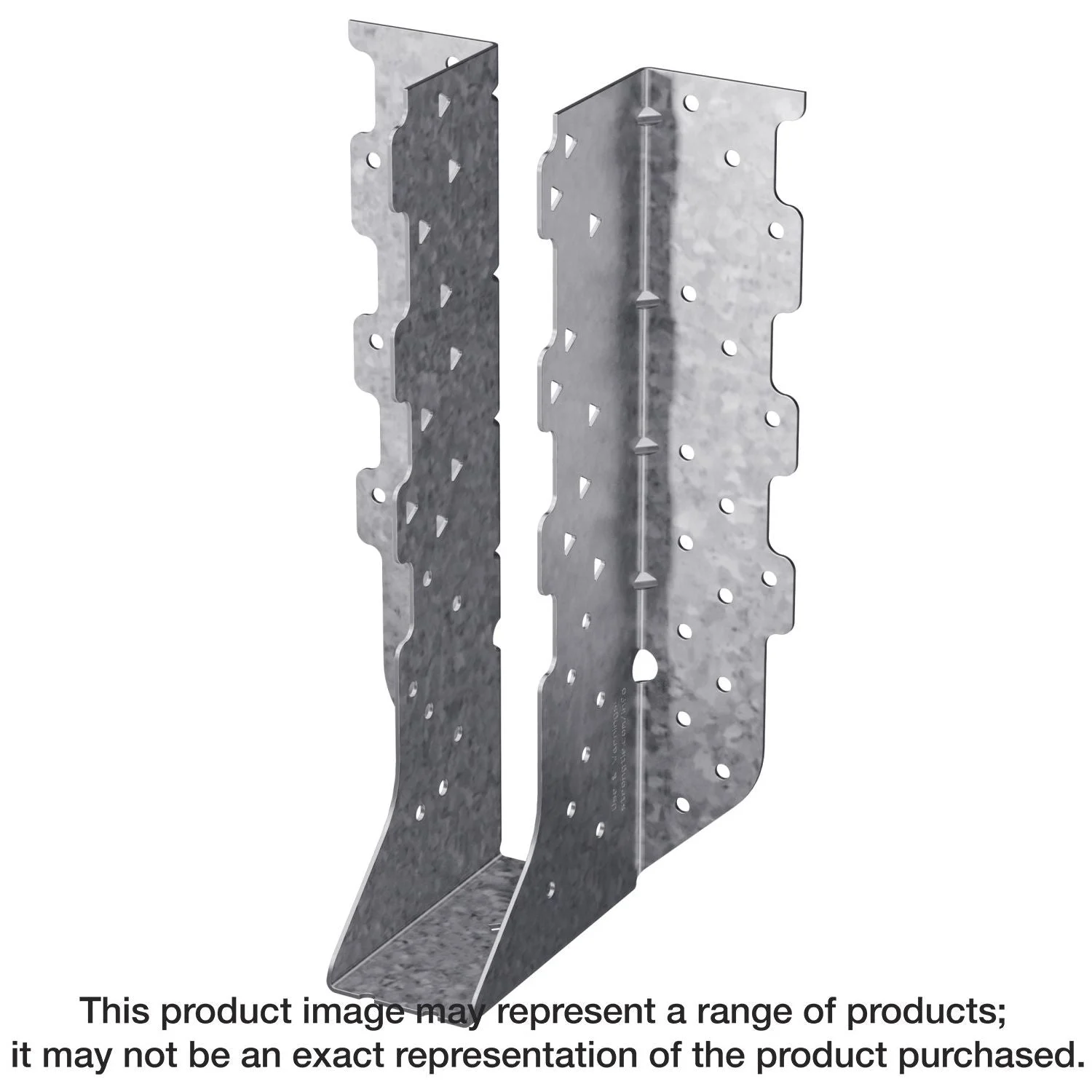

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The HTU face-mount truss hangers have nail patterns designed specifically for shallow heel heights. The full allowable loads (with minimum nailing) apply to heel heights as low as 3-7/8 in. Minimum and maximum nailing options provide solutions for varying heel heights and end conditions.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Nominal joist size: Double 2×6
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 16d common nails and 10d common nails, or #9 x 1-1/2 in. Strong-Drive SD Connector screws
