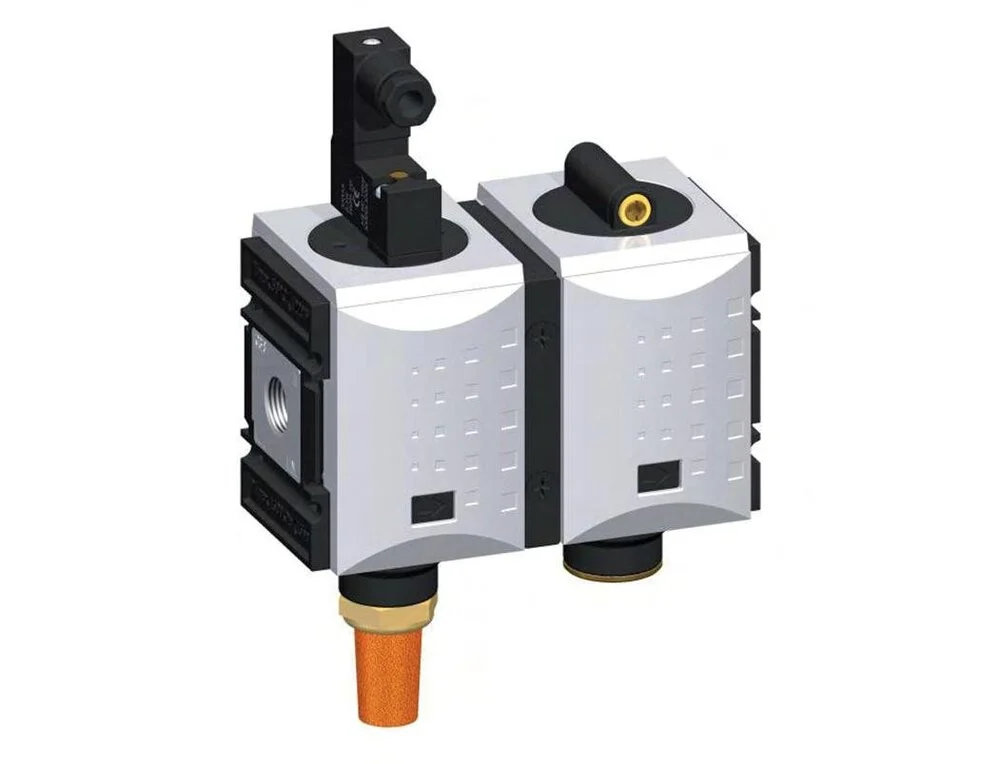

This soft-start valve provides a controlled increase of downstream pressure at startup and can be dumped when needed to exhaust the system pressure quickly. At a pressure of approximately 50% of the input pressure, the start-up valve switches over to maximum throughway. Pressure build-up can be slowed down or sped up using an adjustment screw. A soft start is necessary if cylinders moving too quickly can cause entrapment or damage during machine startup. The valve has G 1/2 inch ports and the maximum flow rate is 3400 l/min. The coil voltage is 115 V AC and nominal power 3 VA. The input pressure range is from 2.5 to 10 bar (36.25 to 145.0 psi). A shut-off valve must be installed before a start-up valve.
Specifications
Connection size : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Voltage : 115 V AC
Material : PA 66
Seal material : NBR (nitrile rubber)
Min pressure difference (bar) : 2.5
Max pressure (bar) : 10
Min temperature (°C) : -10
Max temperature (°C) : 50
Degree of protection (IP) : IP65
Nominal power (W) : 3
Max flow rate (l/min) : 3400
Valve ports/positions : 3/2 way
Model : Futura 2
Voltage-type : AC
Max pressure (bar) : 10
Actuation : Electric
