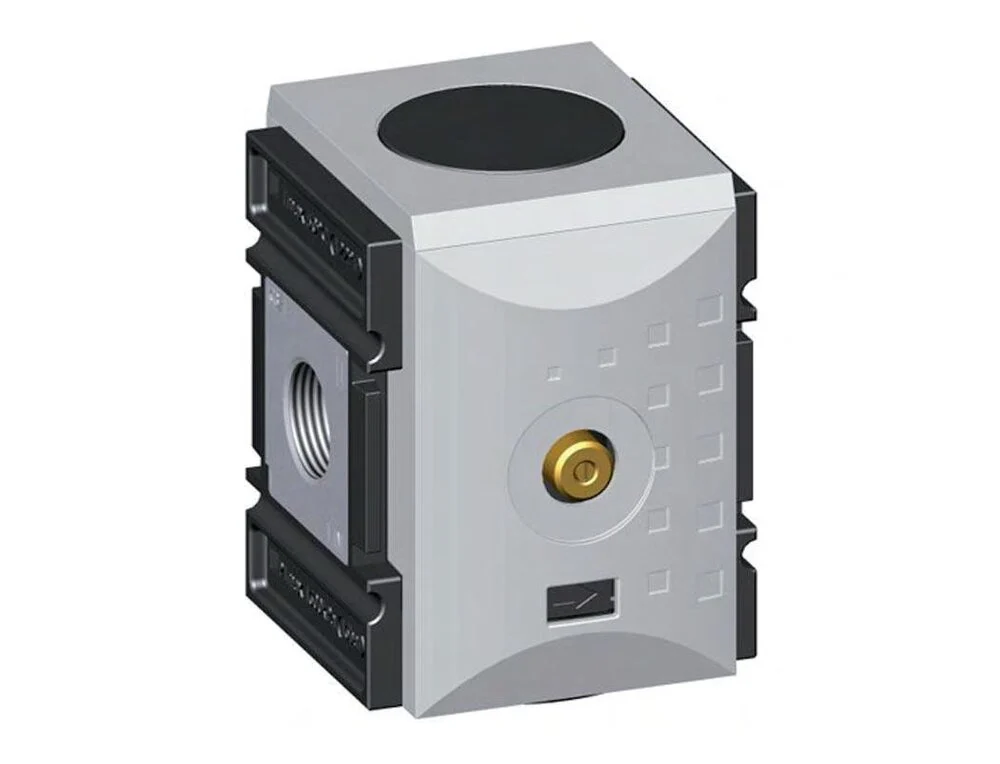

This soft-start valve provides a controlled increase of downstream pressure at startup and can be dumped when needed to exhaust the system pressure quickly. At a pressure of approximately 50% of the input pressure, the start-up valve switches over to maximum throughway. Pressure build-up can be slowed down or sped up using an adjustment screw. A soft start is necessary if cylinders moving too quickly can cause entrapment or damage during machine startup. The valve has G 3/4 inch and 1/2 inch ports and the maximum flow rate is 8750 l/min. The input pressure range is from 2.5 to 16 bar (36.25 to 232.0 psi). A shut-off valve must be installed before a start-up valve.
Specifications
Connection size : 3/4 inch,1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : PA 66
Seal material : NBR (nitrile rubber)
Min pressure difference (bar) : 2.5
Max pressure (bar) : 16
Min temperature (°C) : -10
Max temperature (°C) : 50
Max flow rate (l/min) : 8750
Valve ports/positions : 3/2 way
Model : Futura 4
Max pressure (bar) : 16
Actuation : Air
