Key Features
Tripod Thread Adapter Lets you mount a compact laser with a 1/4 in to 20 thread onto a construction tripod with a 5/8 in to 11 connection, so you can use the sturdier tripod you already own. Controlled 360 Degree Rotation Two-piece design lets you rotate the instrument smoothly, which is exactly what you want when you are lining up laser marks without bumping the whole tripod. All-Metal Build Metal construction holds threads up to daily jobsite tightening and loosening better than plastic adapters.
Overview

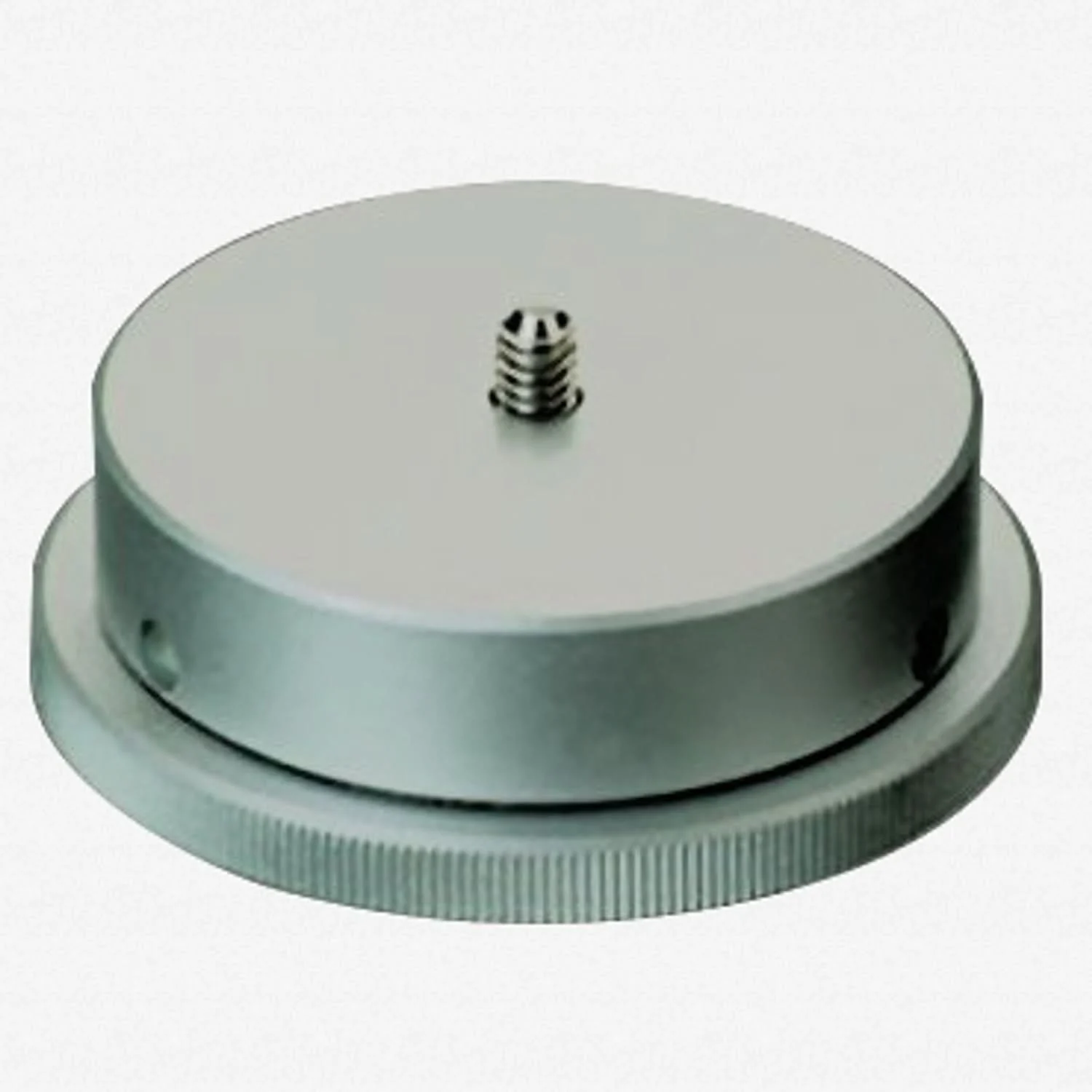

The Stabila 07510 1/4-20 to 5/8-11 Adapter Base (Model Number 07510) is a laser accessory made to bridge the gap between compact lasers and full-size construction tripods. This is an adapter base designed for mounting small lasers to larger construction tripods.
If your laser has a standard 1/4 in to 20 mount but your tripod head is 5/8 in to 11, this adapter makes them work together cleanly. That means you can put a compact laser on a heavier, more stable tripod for layout, leveling, and alignment work without fighting wobble.
The two-piece design is the real win here. Instead of loosening the tripod head and accidentally moving your setup, you can rotate the instrument 360 degrees with control to fine-tune your line or point where it needs to be.
It is built from metal and made for regular jobsite use. If you do interior layout, framing, or any laser-based alignment work and you prefer a full-size construction tripod, this adapter is a simple fix that saves time and frustration.
Mount Compact Lasers on Construction Tripods
This adapter is for the common mismatch: a compact laser with a 1/4 in to 20 mount and a construction tripod with a 5/8 in to 11 head.
- Top mount: 1/4 in to 20 thread for compact lasers
- Bottom connection: 5/8 in to 11 thread for construction tripods
Fine-Tune Alignment Without Bumping the Tripod
The two-piece base is built so you can rotate your laser with confidence. That makes it easier to land lines and points where you want them, especially in tight interior layout.
- Two-piece design for controlled adjustment
- Rotates 360 degrees for positioning and alignment
Built for Daily Jobsite Threading
It is a simple part, but it is one you will tighten and loosen a lot. The metal construction and grip-friendly ring make setup quicker and helps the threads hold up over time.
- Material: metal
- Cat. No.: 07510
What’s in the Box
- (1) Stabila 1/4-20 to 5/8-11 Adapter Base (07510)
Key Specifications
| Accessory Type | Adapter base |
|---|---|
| Top Thread | 1/4 in to 20 |
| Bottom Connection | 5/8 in to 11 |
| Rotation | 360 degrees |
| Material | Metal |
| Weight | 1.0 lb |
| UPC | 089634075103 |
| Made In | Germany |
Compatibility
Laser Mounting Thread Fits lasers and instruments with a 1/4 in to 20 threaded mount. Tripod Connection Threads onto construction tripods with a 5/8 in to 11 connection.
Built For
Construction layout Laser leveling Interior build-out Tripod-mounted laser setup
Pro Tip
Set the tripod and get it stable first, then use the adapter base to rotate the laser into position. You will make smaller, cleaner adjustments without walking your tripod legs across the floor.
Tool Nut’s Take
Tool Nut’s Take
Stabila 07510 1/4-20 to 5/8-11 Adapter Base fixes the most common tripod mismatch
If you run compact lasers but want the stability and height of a construction tripod, this adapter is the clean, right-way-to-do-it solution.
- Who it’s for: Anyone mounting a 1/4 in to 20 laser on a 5/8 in to 11 tripod for layout and leveling.
- Why it stands out: Two-piece design gives controlled 360-degree rotation instead of sloppy loosening and retightening.
- Worth knowing: It is an adapter only, so make sure your laser and tripod match the thread sizes listed in the specs.
Common Questions
- What does this adapter do? It adapts a 1/4 in to 20 laser mount to a 5/8 in to 11 construction tripod connection.
- Can I rotate the laser without moving the tripod? Yes. The two-piece design allows controlled 360-degree rotation of the instrument.
- What is the UPC? 089634075103.
