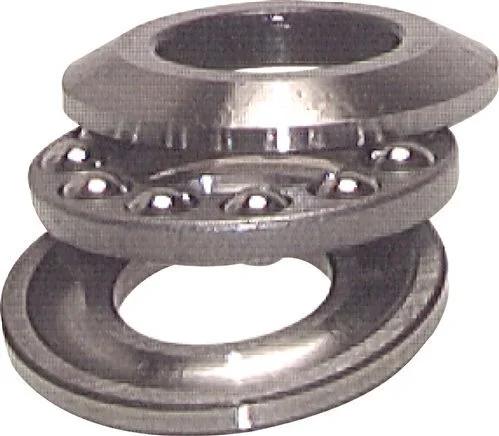

Thrust Ball Bearing 100x170x59.2mm DIN 711 Spherical Resting Surface

Use this spherical resting surface thrust ball bearing for axial loads only. The single direction design consists of two rings, referred to as shaft and housing washers and a single ball and cage assembly.

Pros:

• Suitable for high axial loads

Cons:

• Should not be exposed to radial loads

Specifications

Material : Steel
Suitable for shaft diameter (mm) : 100
Inner diameter (mm) : 100
Outer-diameter (mm) : 170
Length (mm) : 59.2
SKF bearing coding suffix : Open
FAG bearing coding suffix : Open
Model : Ball bearing
Inner diameter housing washer (mm) : 103
Outside diameter shaft washer (mm) : 170
