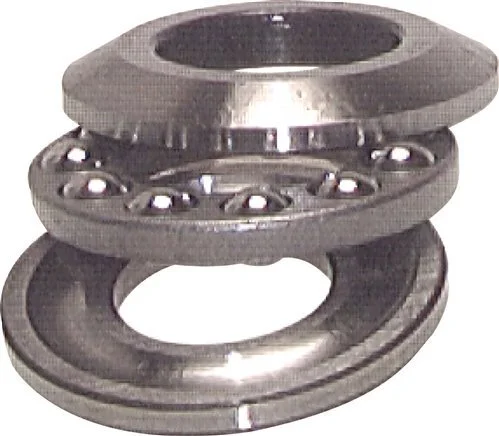

Thrust Ball Bearing 110x160x40.2mm DIN 711 Spherical Resting Surface

Use this spherical resting surface thrust ball bearing for axial loads only. The single direction design consists of two rings, referred to as shaft and housing washers and a single ball and cage assembly.

Pros:

• Suitable for high axial loads

Cons:

• Should not be exposed to radial loads

Specifications

Material : Steel
Suitable for shaft diameter (mm) : 110
Inner diameter (mm) : 110
Outer-diameter (mm) : 160
Length (mm) : 40.2
SKF bearing coding suffix : Open
FAG bearing coding suffix : Open
Model : Ball bearing
Inner diameter housing washer (mm) : 113
Outside diameter shaft washer (mm) : 160
