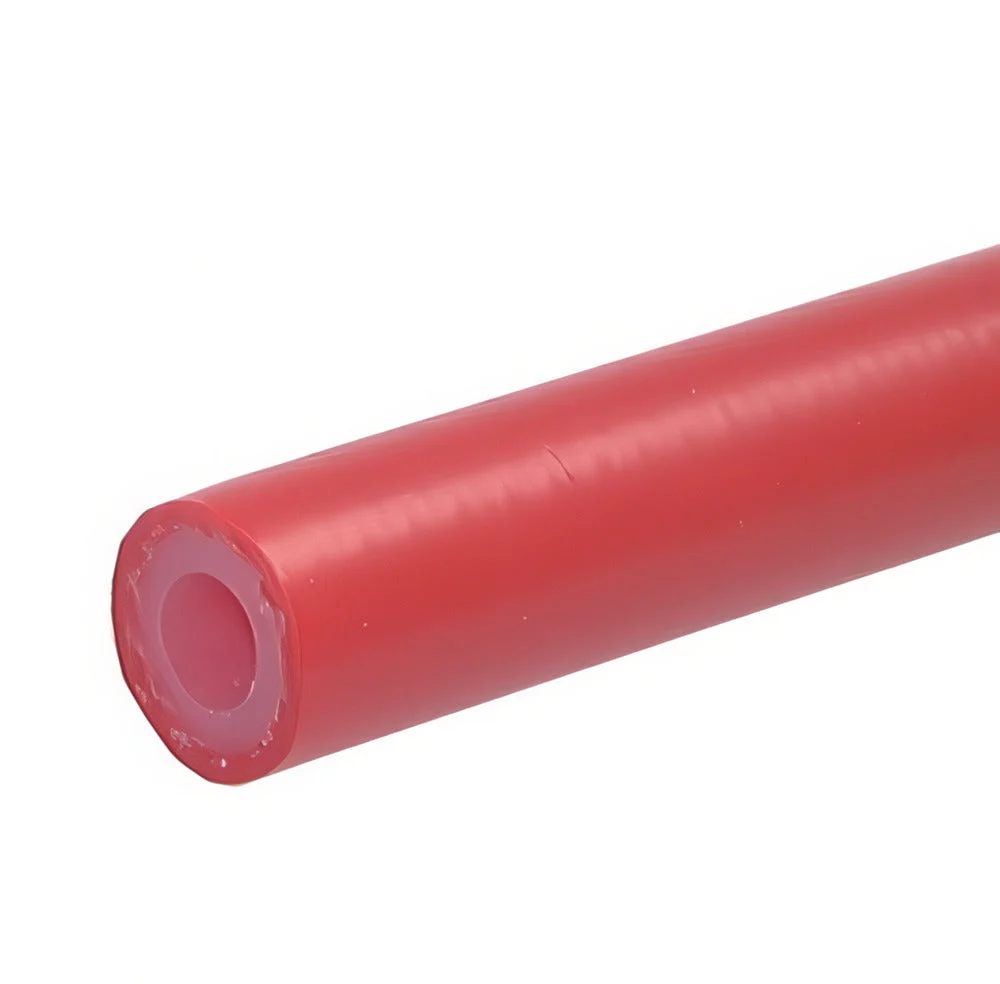

High quality 6 mm low pressure air and gas hose made from silicon with a textile inlay. Suitable for a very large temperature range (-50 °C to 180 °C) and a working pressure of 13 bar at 20 °C. Silicon is relatively chemical resistant, for more information please inform our chemical resistance table. This hose is sold at a pre-cut length of 3 m, we also offer rolls with a length of 50 m.
Pros:
- Suitable for a large range of different gases
- High temperature range (-50 °C to 180 °C)
- Relatively chemical resistant
HL-S series
The HL-S universal air and gas hose series are cost effective high quality silicone hoses. The hoses have a very large temperature range of -60°C to 200°C and are relatively chemical resistant. The series offers hoses with an internal diameter of 3 – 19 mm. The hoses are available in pre-cut lengths of 1, 3 and 10 meter or as a 50 meter roll.
Specifications
Internal diameter (mm) : 6
Outer diameter (mm) : 12
Hose length (m) : 3
Hose material : Silicon
Max pressure at 20 °C (bar) : 13
Min temperature (°C) : -50
Max temperature (°C) : 180
Outer wall material : Silicon
Bursting pressure (bar) : 40
Roll length (m) : 50
Number of inlays : 1
Inlay material : Polyester
Outside wall color : Red
