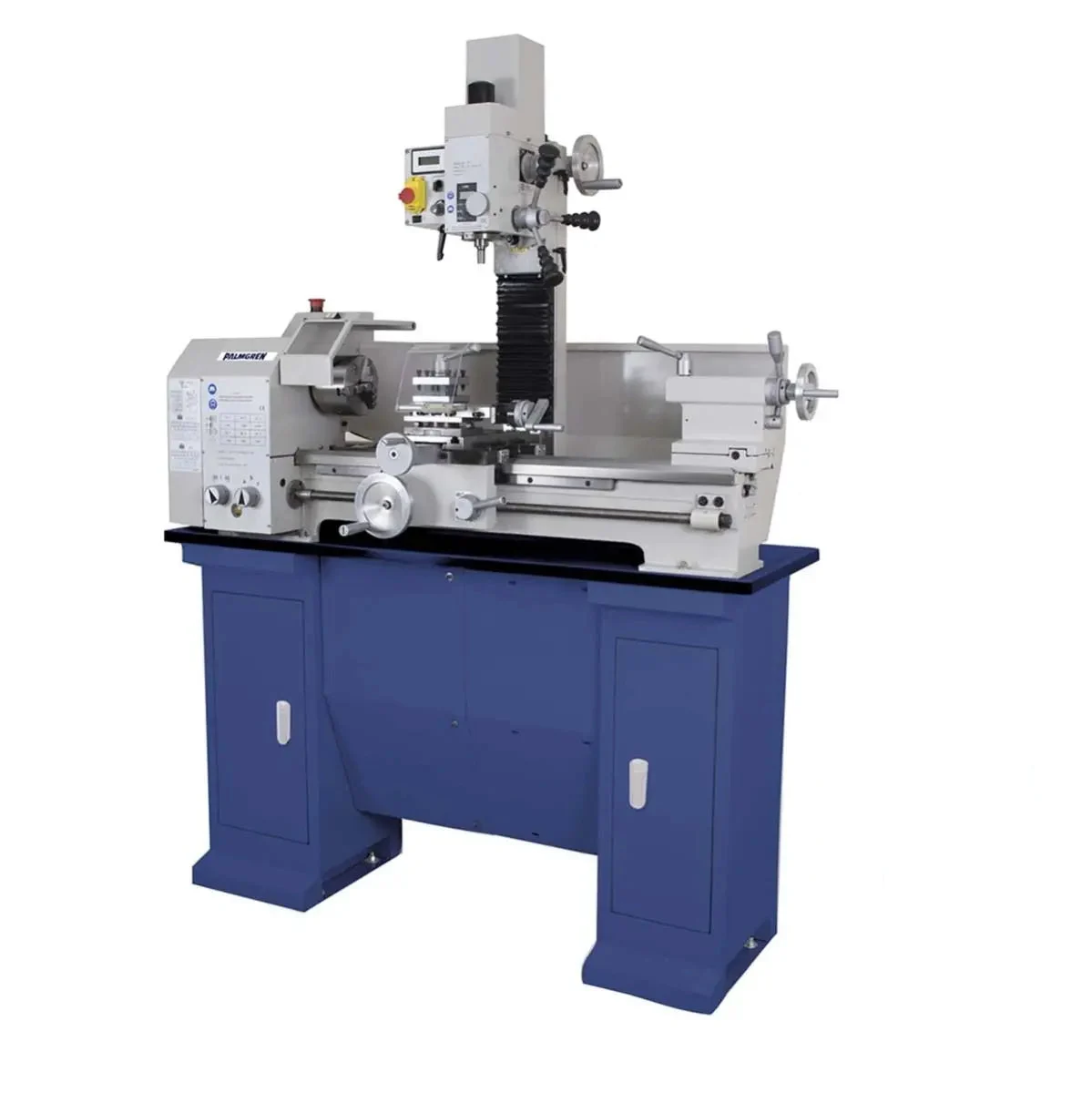

Palmgren’s combination 11″ bench engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines.
Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all-purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.
Frequently Bought Together
Steel floor stand for 9″, 10″, 11″ and Combo Lathes
| Specification | Value |
|---|---|
| 4 Position Tool Post Height | 1/2 in |
| Bed Width | 7.09 in |
| Chuck Size | 5 in |
| Compound Travel | 5.60 in |
| Country of Origin | CN |
| Distance Between Centers | 27 in |
| Dist. Btwn. Cntr. & Comp. Tab. | 3.49 in |
| Drilling Capacity in Cast Iron | 0.63 in |
| Gear Stages | 2 |
| High Range | 100 – 2900 |
| Lathe Height | 24.80 in |
| Lathe Length | 54.72 in |
| Lathe Motor | 1 HP / 115 V / 60HZ / 1PH |
| Lathes Type | Gear Head |
| Lathe Weight | 440.93 lb |
| Lathe Width | 27.56 in |
| Longitudinal Feed Rates | 0.07 – 0.1 – 0.2 |
| Low Speed | 50 – 1400 |
| Max Turning Diameter | 11.02 in |
| Mill Height | 33.85 in |
| Mill Length | 26.38 in |
| Mill Motor | 1 HP / 115 V / 60HZ / 1PH |
| Mill Weight | 227.08 lb |
| Mill Width | 21.65 in |
| Milling Cap Inserted Tooth Cut | 2.48 in |
| Milling Cap End Mill Cut (max) | 0.79 in |
| Number of Spindle Speeds | 6 |
| Pitch | 8 – 56 in |
| Spindle Holding Fixture | MT2 / M10 |
| Table Dimensions | 19.69 in × 7.09 in |
| Spindle Hole | 1.02 in |
| Spindle Travel | 1.97 in |
| Swiveling | ± 90° |
| Tailstock Sleeve Travel | 4.13 in |
| Tailstock Taper | MT2 |
| Top Slide Travel | 2.43 in |
| T-Slot Size/Distance/Quantity | 0.47 in / 2.48 in / 3 |
| Working Radius | 7.28 in |
| Warranty | 3 Year |
| Z-Axis Travel | 14.57 in |
| UPC | 726896845203 |
| Unit of Measure | Each |
| Product Height (in) | 39.5 |
| Product Length (in) | 54 |
| Product Width (in) | 29.5 |
| Product Weight (lbs) | 550 |
