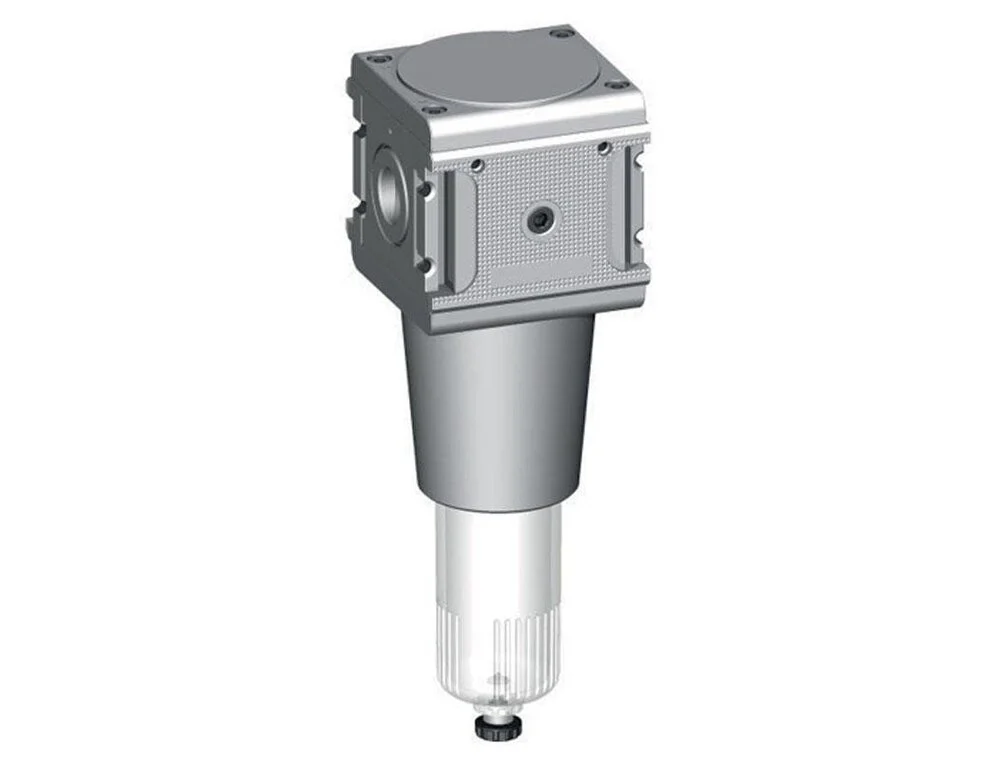

The filter removes water, dirt and other harmful particles larger than 40 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1 inch ports. The maximum flow rate is 10500 l/min. Please note that the maximum flow rate alone doesn’t provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The maximum input pressure is 20.0 bar (290 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). It has an automatic (closed without pressure) condensate drain with a drain capacity of 125 cm3. The housing material is made out of zinc die-cast and the filter has a bowl made of polycarbonate (PC).
Mounting brackets need to be ordered separately.
Specifications
Connection size : 1 inch
Max flow rate (l/min) : 10500
Max. pressure difference at 20 °C (bar) : 20
Filter size (µm) : 40
Material : Zinc die-cast
Condensate drain type : Automatic (closed without pressure)
Connection type : Inner thread cylindrical BSPP-G
Model : Multifix 5
Min temperature (°C) : -10
Max temperature (°C) : 60
Height (mm) : 309
Length (mm) : 100
Container material : Polycarbonate (PC)
Drain capacity (cm³) : 125
