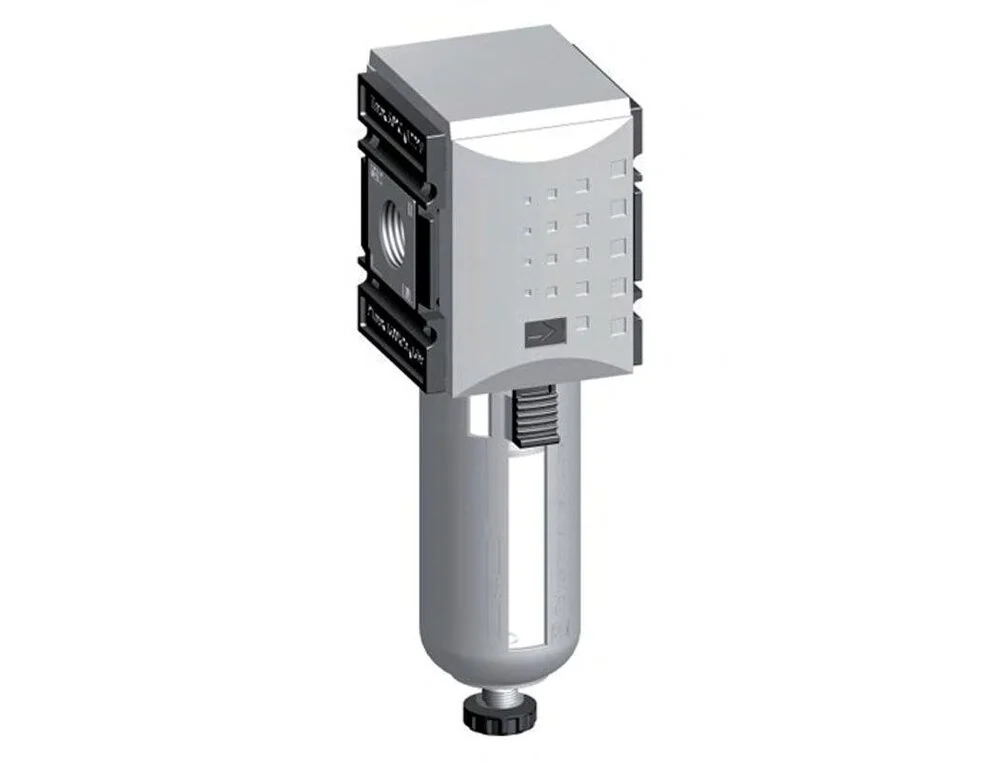

The filter removes water, dirt and other harmful particles larger than 5 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1/2 inch ports. The maximum flow rate is 3500 l/min. Please note that the maximum flow rate alone doesn’t provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 50 °C (14 and 122 °F). It has an auto condensate drain with a drain capacity of 49 cm3. The housing material is made out of PA 66 and the filter has a bowl made of metal. It has a position indicator to see the bowl level.
Mounting brackets need to be ordered separately.
Specifications
Connection size : 1/2 inch
Max flow rate (l/min) : 3500
Max. pressure difference at 20 °C (bar) : 16
Filter size (µm) : 5
FRL feature : Bowl with inspection tube
Material : PA 66
Condensate drain type : Auto
Min pressure (bar) : 1.5
Connection type : Inner thread cylindrical BSPP-G
Model : Futura 2
Min temperature (°C) : -10
Max temperature (°C) : 50
Height (mm) : 190
Length (mm) : 63
Container material : Metal
Drain capacity (cm³) : 49
