Key Features
QuadTec CutterheadThe Laguna PX|12 benchtop planer uses a QuadTec cutterhead with 4-sided carbide inserts, so you get longer edge life and a fresh cutting edge by rotating inserts instead of stopping work for full knife changes. 2 HP Benchtop PowerThe 110V 2 HP motor and 10,000 cutterhead RPM give this thickness planer the power and finish quality serious woodworkers want without moving up to a larger floor model. Easier Board SupportDual flip-down extensions help support stock on the way in and out, which makes feeding longer boards more manageable and helps reduce snipe at the ends.
Overview

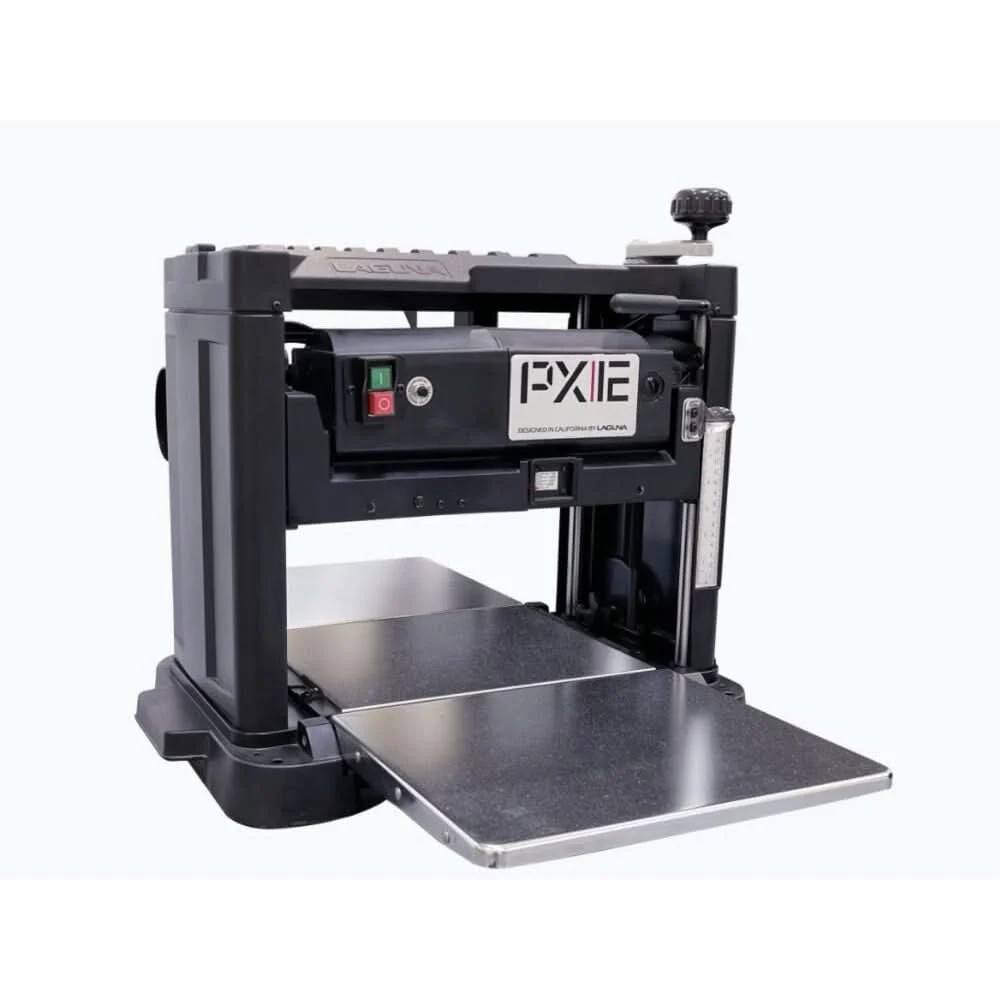

The Laguna PX|12 Benchtop Planer is a compact thickness planer built for woodworkers who want cleaner finish quality, easier knife maintenance, and true benchtop convenience. This is a benchtop planer designed for thickness planing rough or oversized lumber down to a consistent finished thickness. Model Number: MPLANPX12-0130-R. With a 12-1/2 inch planing width, 6 inch maximum stock thickness, and a 2 horsepower 110V motor, it is aimed at serious DIY users, cabinet shops, trim carpenters, and small professional woodworking setups that need dependable surfacing capacity without giving up a lot of floor space.
The big story here is the QuadTec cutterhead. Laguna lists this machine with 26 four-sided carbide inserts in a 4-row layout. In plain English, that means less downtime and less fuss when compared to traditional straight planer knives. When an edge gets dull or chipped, you rotate the insert instead of replacing a long knife set and going through a full alignment routine. That matters if you work with figured hardwoods, mixed grain, or reclaimed material where a single hidden defect can ruin a standard knife edge fast.
Power is right where a planer in this class needs it. The 2 horsepower universal motor runs on 110 volts and spins the cutterhead at 10,000 RPM. Combined with a feed speed of 26 feet per minute, that setup is built to give you efficient stock removal with a smoother finish than you would expect from many entry-level portable planers. The maximum depth of cut is 3/32 inch, which gives you enough bite for flattening dimensioned stock in reasonable passes while still keeping the machine under control.
Laguna also built in the details that make a planer easier to live with day to day. The flip-down extensions help support longer boards as they enter and exit the machine, which can make feeding more stable and improve overall consistency. A hair line thickness readout gives you a simple visual reference when dialing in final passes. Minimum stock thickness is listed at 5/32 inch, minimum stock length is 10 inches, and maximum stock width is 12-1/2 inches, so the machine covers a useful range for furniture parts, face frames, shelving, trim stock, and glue-up cleanup.
For dust handling, the planer uses a 4 inch dust port with a step-down to 2-1/2 inches. That gives you more flexibility depending on whether you are running a dedicated dust collector or tying into a smaller shop collection setup. On a planer, chip management is not optional. If the machine cannot move chips cleanly, finish quality and feed consistency both suffer. Having both port sizes available is a practical feature for mixed shop setups.
From a footprint standpoint, this machine stays manageable for smaller shops. Laguna lists approximate set-up dimensions of 24 inches by 34 inches, and net weight is 65 pounds. That is heavy enough to feel planted on a stand or bench, but still realistic to move when your layout changes. It also runs on a standard 110V supply, though Laguna calls for a 20 amp circuit. That is worth paying attention to if you are planning shop placement around existing outlets.
If you are deciding who this planer is really for, the sweet spot is the woodworker who wants better cut quality and lower maintenance than a basic disposable-knife benchtop planer. It makes sense for furniture building, hardwood stock prep, small-batch production, and serious home shops. If you primarily run rough framing lumber all day every day, you may want a larger stationary machine. But if you want a benchtop planer that brings carbide insert convenience and solid finish performance to a compact footprint, this one earns a close look.
Compact Size, Serious Surfacing
The Laguna PX|12 Benchtop Planer is built for shops that need real thicknessing capacity without giving up permanent floor space. It gives you enough width, enough power, and a more maintenance-friendly cutterhead than the usual throwaway-knife portable planer.
- 12-1/2 in. maximum stock width and 6 in. maximum stock thickness cover a wide range of woodworking jobs
- 65 lb net weight keeps it portable enough for bench or stand use while still feeling stable in operation
- Dual flip-down extensions help support longer boards during planing
Key Specifications
| Tool Type | Benchtop Planer |
|---|---|
| Voltage (V) | 110 V |
| Motor Output | 2 HP, 15 Amp |
| Circuit Requirement | 20 Amp |
| Maximum Stock Width | 12-1/2 in. |
| Maximum Stock Thickness | 6 in. |
| Minimum Stock Thickness | 5/32 in. |
| Minimum Stock Length | 10 in. |
| Maximum Depth of Cut | 3/32 in. |
| Feed Speed | 26 FPM |
| Cutterhead Speed | 10,000 RPM |
| Cutterhead Diameter | 1-7/8 in. |
| Knife Configuration | 26 x 4-sided carbide inserts, 4-row |
| Dust Port Diameter | 4 in. step down to 2-1/2 in. |
| Weight (lbs) | 65 lbs |
| Set-Up Dimensions | 24 in. x 34 in. |
Built For
WoodworkingFurniture MakingCabinetryTrim and MillworkSmall Shop Stock PrepHardwood SurfacingDIY / HobbyistProfessional Wood Shops
Pro Tip
On figured hardwoods, take lighter finishing passes and rotate any chipped carbide insert right away instead of trying to push through it. That is the whole advantage of this cutterhead style, and it keeps one damaged edge from telegraphing lines across your board.
Warranty & Support
Outlet listing states a 6-month warranty for this reconditioned unit.
Tool Nut’s Take
Tool Nut’s Take
Why the Laguna PX|12 Benchtop Planer Makes Sense
The Laguna PX|12 Benchtop Planer hits a sweet spot for woodworkers who want carbide insert convenience and better finish potential than the usual basic portable planer.
- Who it’s for: Woodworkers, cabinet builders, and serious home shop users who need a compact thickness planer for regular stock prep.
- Why it stands out: The QuadTec cutterhead, 2 HP motor, and flip-down board support give it a more shop-ready feel than many benchtop units.
- Worth knowing: This version is tied to a reconditioned SKU, and Laguna calls for a 20 amp circuit, so check power and listing details before you buy.
Common Questions
- What kind of tool is this? This is a benchtop thickness planer designed to bring lumber and glued-up stock down to a uniform thickness.
- What is the maximum planing width? Laguna lists the maximum stock width at 12-1/2 inches.
- Does it run on standard household power? It uses 110V power, but the manufacturer lists a 20 amp circuit requirement.
- What style cutterhead does it use? It uses Laguna’s QuadTec cutterhead with 4-sided carbide inserts for longer service life and easier maintenance.
