Professional Laser-Welding Protection

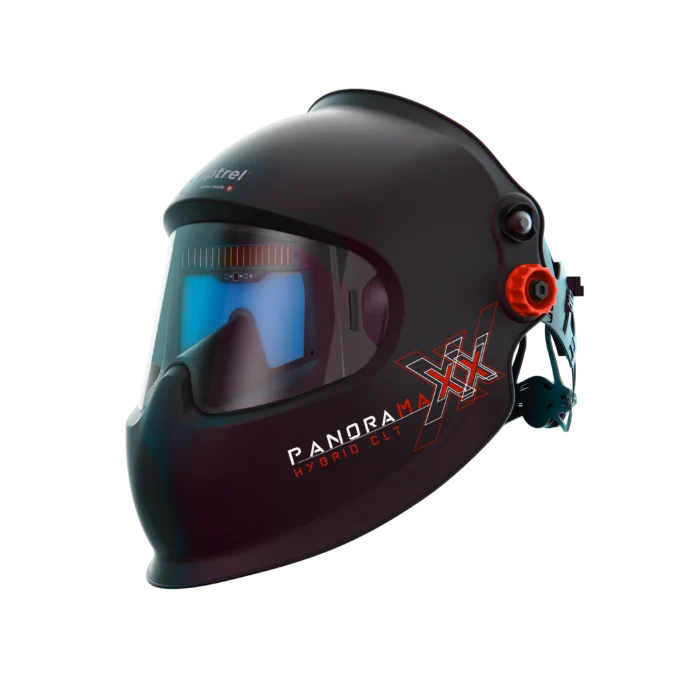

The Optrel Panoramaxx Hybrid CLT delivers superior protection for laser welding applications with Crystal Lens Technology 2.0 and ShadeTronic® automatic shade adjustment from 2.5/4-12. Features true-color view without green or blue tint for realistic color perception during welding operations.
Advanced Technology Features
- Panoramic XXL field of view – 6 times larger than standard auto-darkening filters
- Five sensors for maximum safety in difficult lighting conditions
- FadeTronic® opening delay reduces eye fatigue
- Rechargeable Li-polymer battery with solar panel backup
- Ultra-fast switching time: 0.090ms light to dark
- Grinding mode for brightest vision during grinding work
Applications
- Laser welding – laser range 1030 – 1100 nm
- Electrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Plasma Cutting
- Gas Welding
- Grind Mode
Comfort and Durability
Lightweight at 685g with IsoFit® headgear for three-dimensional adjustment. Certified to CE, ANSI Z87.1, and multiple international standards. Suitable for all electrical welding processes plus laser welding in 1000-1100nm range. Includes 2-year warranty with optional extension to 3 years.
Techdata
| Shade Levels | Inactive: Shade level 2.5 Active, Manual: Shade level 3-8 ShadeTronic 4-12 |
| Energy Supply | Solar cells, Li-polymer battery pack, chargeable via Micro-USB |
| Battery Life | 300 to 500 charging cycles |
| Sensors | Five sensors |
| Sensitivity | Continuously, new with “Super High” sensitivity |
| Switching time | Light to Dark: 0.090ms at 20°C, 0.070ms at 55°C Dark to Light: 0.1s to 2.0s (with FadeTronic) |
| Field of Vision | 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF |
| Classification EN379 | 1/1/1/1 |
| Eye Protection | UV/IR protection: maximum protection at all shade levels Laser protection: 1030-1100nm 16321 OS W3/4-9/5<13 V2 1030-1100 D LB7 IR LB8 OS 1030-1100 OD7 C5 PS3 ISO 19818-1 OS CE |
| Operating Temperature | -10°C to +55°C / 14°F to 131°F |
| Storage Temperature | -20°C to +70°C / -4°F to 158°F |
| Total Weight | 685g / 24.02 oz |
| Certifications | CE, UKCA, complies to ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3 |
| Scope of Delivery | Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Front Cover Lens, Warranty Card |
| Guarantee | 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register |
All Features
Advanced Optics & Visibility
- Crystal Lens Technology 2.0
Ultra-clear, bright view before, during, and after welding with a light state of 2.0 for maximum visibility. - True-Color View
High-contrast, realistic color perception with no green or blue tint, improving weld accuracy. - Panoramic XXL Field of View
Delivers up to 6x the viewing area of standard welding helmets for unmatched awareness. - Anti-Glare Protection
Reduces glare to improve visibility and minimize eye fatigue during long jobs.
Intelligent Auto-Darkening System
- ShadeTronic®
Automatically adjusts shade levels to match changing arc brightness in real time. - FadeTronic® (Twilight Function)
Smooth, adjustable transition from dark to light state to reduce eye strain. - Delay Function
Controls how quickly the lens returns to light state after welding. - Sensitivity Regulation
Fine-tunes lens responsiveness based on your environment and welding conditions. - Multi Sensor Detection (Up to 5 Sensors)
Ensures consistent arc detection even in challenging lighting conditions.
Laser & Safety Protection
- Laser Protection System
Designed for hand-held laser welding, with integrated side protection to block scattered radiation.
Power & Convenience
- Rechargeable Battery System
Lithium-polymer battery charges via solar power or USB, ensuring continuous operation. - Grinding Mode
Provides the brightest possible view for grinding and non-welding tasks.
Comfort & Ergonomics
- IsoFit® Headgear
Fully adjustable 3D fit that adapts to any head shape for all-day comfort. - Patented Excenter Adjustment
Precisely positions the helmet with a simple twist for optimal balance. - Position Locker
Keeps the helmet securely in place—whether raised or lowered.
Jobsite Versatility
- Hard Hat Adapter Compatible
Works seamlessly with industrial safety helmet accessories. - Optimized for Overhead Welding
Rounded front design improves performance and comfort for overhead applications.
